6ED10554MH080BA0

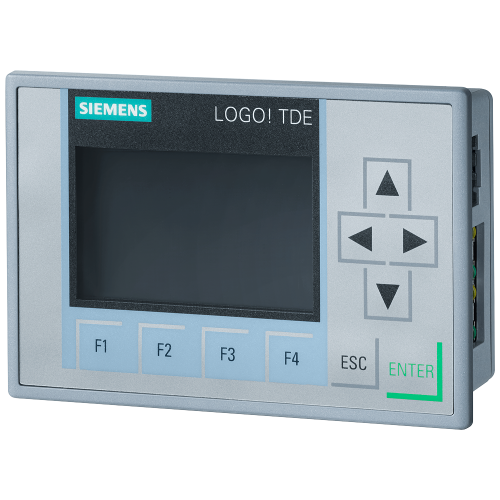

LOGO! TDE Text Display, 6 Lines, 3 Background Colours, 2 Ethernet Ports

Manufacturer's No: 6ED1055-4MH08-0BA0     Manufacturer: Siemens
LOGO! TDE Text Display, 6 Lines, 3 Background Colours, 2 Ethernet Ports

Availability Available to order

POA

This product has been superseded by

6ED10554MH080BA1

Please check compatibility before purchasing.

  • LOGO! TDE Text Display
  • 6 lines display
  • 3 background colors
  • 2 Ethernet ports
  • End of product lifecycle: 01/10/22
  • Successor model: 6ED1055-4MH08-0BA1


Product

Manufacturer Material ID -
6ED1055-4MH08-0BA0
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Max. character height, display -
- Millimetre
Degree of protection (NEMA) -
UN
Built-in depth -
38.7 Millimetre
Operation temperature -
-20 Degrees celsius
Voltage type of supply voltage -
AC/DC
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Supporting protocol for TCP/IP -
Number of function buttons, programmable -
4
Useful project memory/user memory -
0 kiloByte (1000 Byte)
With message indication -
Process value representation (output) possible -
Process default value (input) possible -
Number of password levels -
1
Number of online languages -
2
Degree of protection (IP), front side -
IP65
Number of display lines -
6
Number of characters per line -
20
Width of the front -
128.2 Millimetre
Height of the front -
86 Millimetre
Number of interfaces PROFINET -
0
Number of HW-interfaces Wireless -
0
Supply voltage AC 50 Hz -
20.4 Volt
Supply voltage AC 60 Hz -
20.4 Volt
Supply voltage DC -
10.2 Volt
Type of display -
LCD with background illumination
Number of buttons with LED -
0
Number of system buttons -
6
Commodity Code -
85389091
last_sent_to_siemens_at -
2026-08-03 17:08:11

Availability Available to order

POA
Sign in or Register for customer prices.

This product has been superseded by

6ED10554MH080BA1

Please check compatibility before purchasing.
