6EP13325BA20

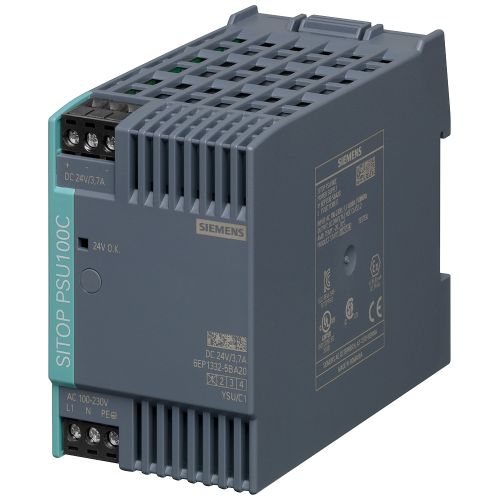

SITOP PSU100C 24 V/3.7 A Stabilized power supply input: 120-230 V AC (DC 110-300 V) output: 24 V DC/

Manufacturer's No: 6EP1332-5BA20     Manufacturer: Siemens
SITOP PSU100C 24 V/3.7 A Stabilized power supply input: 120-230 V AC (DC 110-300 V) output: 24 V DC/

View 3D

Availability Back Order

£151.00
  • Stabilized power supply: SITOP PSU100C
  • Input voltage: 120-230 V AC or 110-300 V DC
  • Output voltage: 24 V DC
  • Output current: 3.7 A
  • NEC Class 2 restricted output

Accessories



Product

Manufacturer Material ID -
6EP1332-5BA20
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
RO
Export Control Regulations -
N / N
UNSPSC -
32121704

Technical Specification

Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
180 Millimetre
Built-in width -
52.5 Millimetre
Degree of protection (IP) -
IP20
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
100 Millimetre
Height -
80 Millimetre
Max. output current 1 -
3.7 Ampere
Modular version -
Nominal value output current 1 -
3.7 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
89 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
230 Volt
Rated supply voltage at AC 60 Hz -
100 Volt
Recess height -
180 Millimetre
Recess width -
52.5 Millimetre
Short-circuit-proof -
Stabilized -
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC/DC
Width -
52.5 Millimetre

Availability Back Order

£151.00
