6EP14363BA00

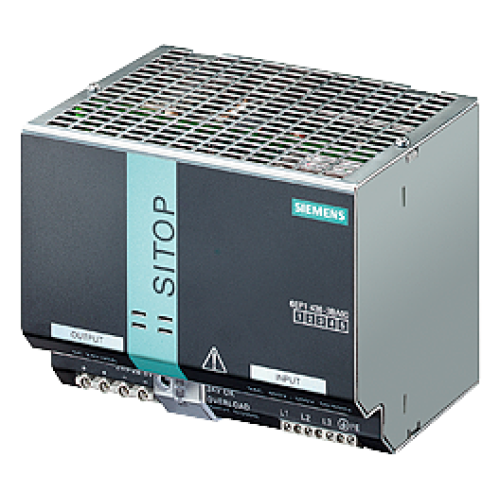

SITOP modular 20 A Stabilized power supply input: 3 AC 400-500 V output: 24 V DC/20 A

Manufacturer's No: 6EP1436-3BA00     Manufacturer: Siemens
SITOP modular 20 A Stabilized power supply input: 3 AC 400-500 V output: 24 V DC/20 A

Availability In Stock

£344.00

This product has been superseded by

6EP34368SB000AY0

Please check compatibility before purchasing.

  • Stabilized power supply: SITOP modular 20 A
  • Input voltage: 400-500 V AC
  • Output voltage: 24 V DC
  • Output current: 20 A

Follow-up article



Product

Manufacturer Material ID -
6EP1436-3BA00
Net Weight -
2.22kg

Additional Product Information

Commodity Code -
85044083
Country of Origin -
AT
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
160 Millimetre
Degree of protection (IP) -
IP20
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
125 Millimetre
Height -
125 Millimetre
Max. output current 1 -
20 Ampere
Modular version -
Nominal value output current 1 -
20 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
480 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
400 Volt
Rated supply voltage at AC 60 Hz -
500 Volt
Recess height -
225 Millimetre
Recess width -
160 Millimetre
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC
Width -
160 Millimetre
Commodity Code -
85044083 Millimetre
last_sent_to_siemens_at -
2026-10-20 07:45:02 Millimetre

Availability In Stock

£344.00
Sign in or Register for customer prices.

This product has been superseded by

6EP34368SB000AY0

Please check compatibility before purchasing.
