6EP33440SB000AY0

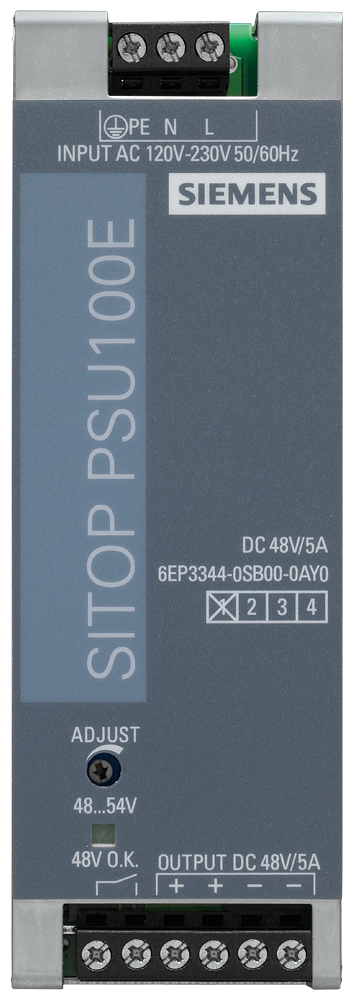

SITOP PSU100E 48 V/5 A Stabilized power supply Input: 120 / 230 V AC Output: 48 V/5 A DC

Manufacturer's No: 6EP3344-0SB00-0AY0     Manufacturer: Siemens
SITOP PSU100E 48 V/5 A Stabilized power supply Input: 120 / 230 V AC Output: 48 V/5 A DC

Availability On Request

£257.00
  • Stabilized power supply
  • Input: 120 / 230 V AC
  • Output: 48 V DC, 5 A

Accessories



Product

Manufacturer Material ID -
6EP3344-0SB00-0AY0
Net Weight -
0.75kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
HU
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
42 Millimetre
Degree of protection (IP) -
IP20
1st secondary output voltage -
48 Volt
Degree of protection (IP rating) -
IP20
Depth -
125 Millimetre
Height -
125 Millimetre
Max. output current 1 -
5 Ampere
Modular version -
Nominal value output current 1 -
5 Ampere
Nominal value output voltage 1 -
48 Volt
Output voltage stabilized -
Power output -
240 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
230 Volt
Rated supply voltage at AC 60 Hz -
100 Volt
Recess height -
225 Millimetre
Recess width -
42 Millimetre
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC
Width -
42 Millimetre

Availability On Request

£257.00
