6ES71934CL300AA0

SIMATIC DP, 1 terminal module TM-E15C24-AT for ET 200S, for electronic module 2 AI TC High Feature,

Manufacturer's No: 6ES7193-4CL30-0AA0     Manufacturer: Siemens
SIMATIC DP, 1 terminal module TM-E15C24-AT for ET 200S, for electronic module 2 AI TC High Feature,

Availability On Request

POA
  • Terminal module: TM-E15C24-AT
  • Compatible with: ET 200S
  • For electronic module: 2 AI TC High Feature
  • Width: 15 mm
  • Terminal type: Spring-type
  • Terminal access to AUX1
  • Continuous AUX1 access


Product

Manufacturer Material ID -
6ES7193-4CL30-0AA0
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Category according to EN 954-1 -
UN
Output voltage at AC 50 Hz -
- Volt
Output voltage at AC 60 Hz -
- Volt
Input voltage at AC 50 Hz -
- Volt
Input voltage at AC 60 Hz -
- Volt
Max. output current AC 50 Hz -
- Ampere
Max. output current AC 60 Hz -
- Ampere
Max. input current AC 50 Hz -
- Ampere
Max. input current AC 60 Hz -
- Ampere
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Front build in possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None

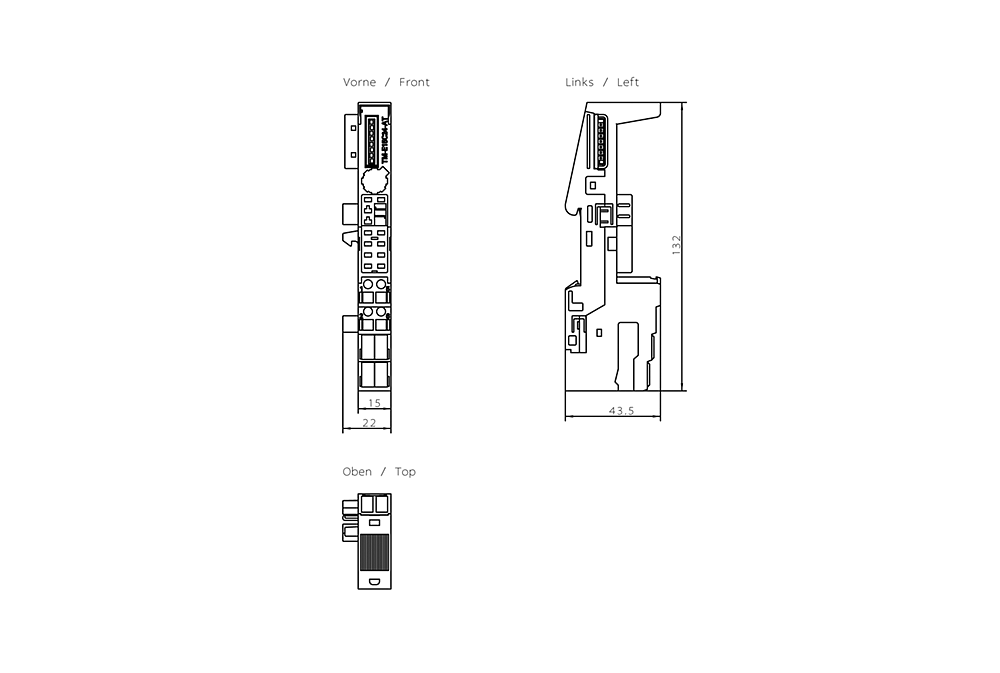

Depth -
43 Millimetre
Height -
132 Millimetre
Input voltage at DC -
20.4 Volt
Max. input current DC -
10 Ampere
Max. output current DC -
10 Ampere
Number of slots -
2
Output voltage at DC -
20.4 Volt
Rail mounting possible -
System accessory -
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Wall mounting/direct mounting -
Width -
15 Millimetre
With pluggable modules, analogue I/O -
