SM 322, 64 outputs, 24Vdc/0.3A - Source, Connection Cable and Term Block Required
warranty

6ES73221BP000AA0

SM 322, 64 outputs, 24Vdc/0.3A - Source, Connection Cable and Term Block Required

Produced by Siemens

Availability Back Order

Price - £732.00
SIMATIC S7-300 DIGITAL OUTPUT SM322, OPTICALLY ISOLATED IN GROUPS OF 16, 64 DO, DC 24V, 0.3A, (SOURCING) TOTAL CURRENT 2A/GROUP 8A/MODULE TERMINAL BLOCKS 6ES7392-1.N00-0AA0 AND CABLES 6ES7392-4...0-0AA0 NECESSARY
No accessories available for this product.
No alternatives available for this product.
Product
Manufacturer Material ID -
6ES7322-1BP00-0AA0
Net Weight -
0.31kg
Additional Product Information
Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

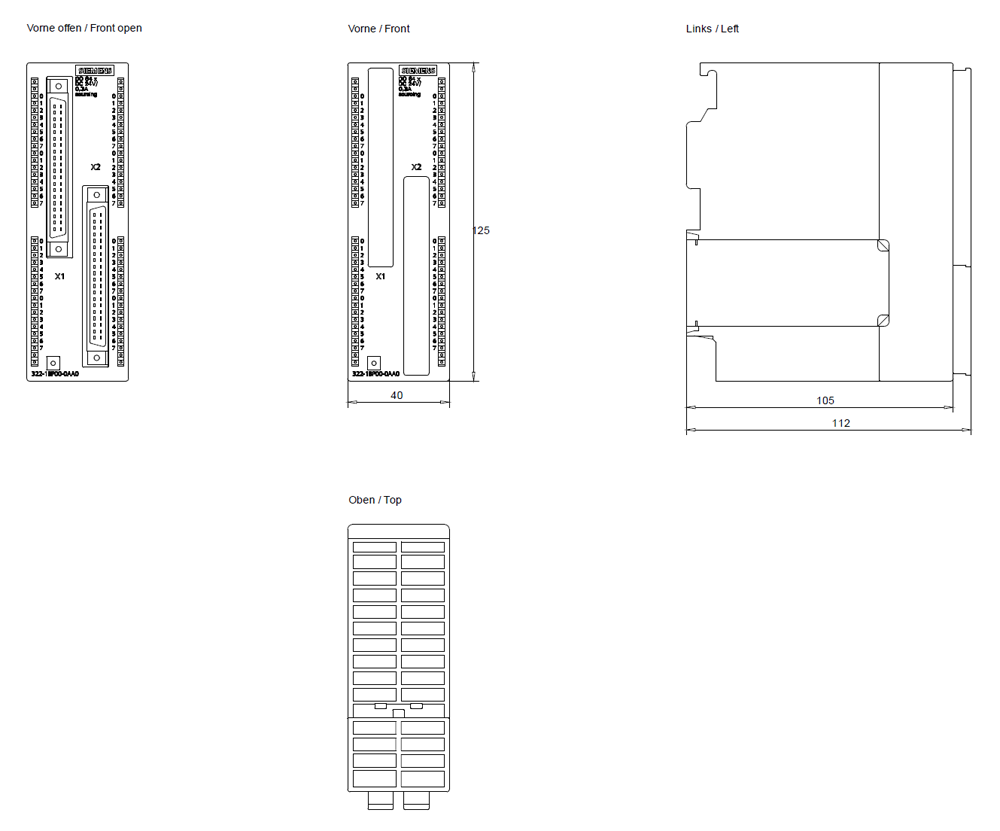

Technical Specification
Width -
40.00 Millimetre
Height -
125.00 Millimetre
Depth -
112.00 Millimetre
Number of digital outputs -
64.00
Time delay at signal exchange -
0.55 Millisecond
Output current -
0.30 Ampere
Supply voltage DC -
20.40 Volt
