6ES73221BP500AA0

SM 322, 64 outputs, 24Vdc/0.3A - Sink, Connection Cable and Term Block Required

Manufacturer's No: 6ES7322-1BP50-0AA0     Manufacturer: Siemens
SM 322, 64 outputs, 24Vdc/0.3A - Sink, Connection Cable and Term Block Required

View 3D

Availability Back Order

POA
  • Model: SM 322
  • Outputs: 64
  • Voltage: 24V DC
  • Current: 0.3A per output
  • Total Current per group: 2A
  • Total Current per module: 8A
  • Isolated in groups of 16
  • Requires connection cable and terminal block 6ES7392-1.N00-0AA0
  • Suitable for SIMATIC S7-300 digital output

Accessories



Product

Manufacturer Material ID -
6ES7322-1BP50-0AA0
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
-
Siemens
Input current at signal 1 -
- Milliampere
Type of voltage (input voltage) -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
0.45 Millisecond
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None

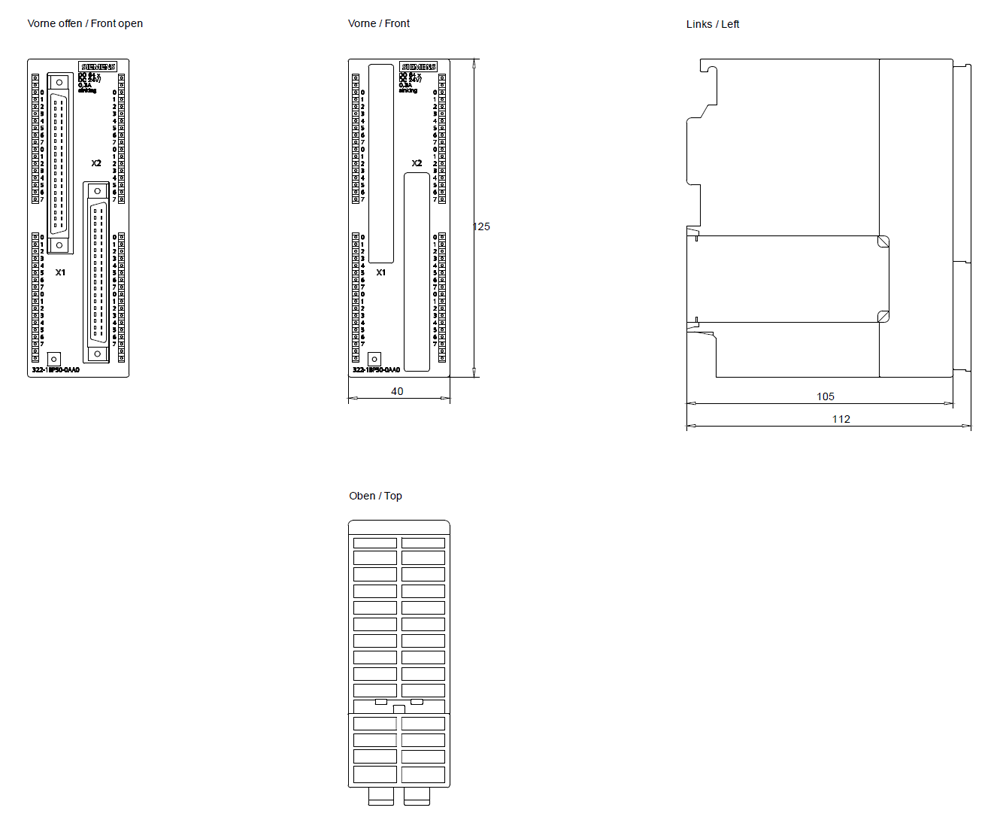

Depth -
112 Millimetre
Digital outputs configurable -
Height -
125 Millimetre
Number of digital inputs -
0
Number of digital outputs -
64
Output current -
0.3 Ampere
Permitted voltage at output -
0 Volt
Redundancy -
Short-circuit protection, outputs available -
Supply voltage DC -
20.4 Volt
Time delay at signal change -
0.45 Millisecond
Type of digital output -
Transistor
Type of output voltage -
DC
Voltage type of supply voltage -
DC
Width -
40 Millimetre

Availability Back Order

POA
