CPU 1511C-1 PN, 175 KB / 1 MB (Program/data memory), 16 Inputs / 16 Outputs, 4+1 AnaIogue Inputs / 2 Analogue Outputs, 6 HSC (100 KHZ), 1 x PN (2 port Switch), includes push-in connector
warranty

6ES75111CK010AB0

CPU 1511C-1 PN, 175 KB / 1 MB (Program/data memory), 16 Inputs / 16 Outputs, 4+1 AnaIogue Inputs / 2 Analogue Outputs, 6 HSC (100 KHZ), 1 x PN (2 port Switch), includes push-in connector

Produced by Siemens

Availability In Stock

Price - £1,417.00

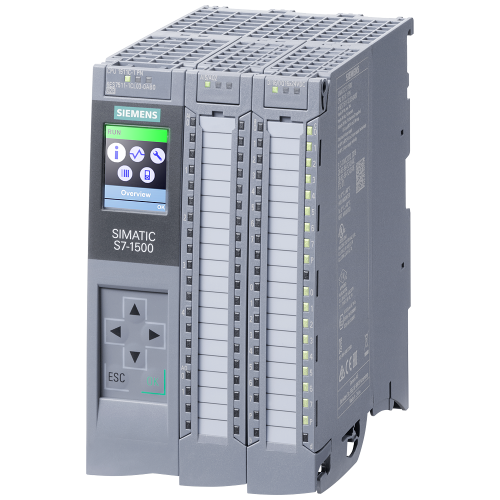

SIMATIC S7-1500 Compact CPU CPU 1511C-1PN, central processing unit with working memory 175 KB for program and 1 MB for data, 16 digital inputs, 16 digital outputs, 5 analog inputs, 2 analog outputs, 6 high speed counters, 4 high speed outputs for PTO/PWM/frequency output 1. interface: PROFINET IRT with 2 port switch, 60 NS bit-performance, incl. front connector push-in, SIMATIC memory card necessary
No accessories available for this product.
No alternatives available for this product.
Product
Manufacturer Material ID -
6ES7511-1CK01-0AB0
Net Weight -
1.23kg
Additional Product Information
Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503
Technical Specification
Number of interfaces PROFINET -
1
Width -
85 Millimetre
Height -
147 Millimetre
Depth -
129 Millimetre
Number of digital inputs -
16
Number of digital outputs -
16
Number of analogue inputs -
5
Number of analogue outputs -
2
Memory size -
1175 kiloByte (1000 Byte)
Processing time (1K, binary operation) -
0.06 Millisecond
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces PROFINET -
1
Supply voltage DC -
19.2 Volt
