Front connector module SIMATIC S7-1500, dig. Os 2A, 16-p. cable connect, screw

6ES79215AD000AA0

Front connector module SIMATIC S7-1500, dig. Os 2A, 16-p. cable connect, screw

Produced by Siemens

Availability Back Order

Price - £63.00

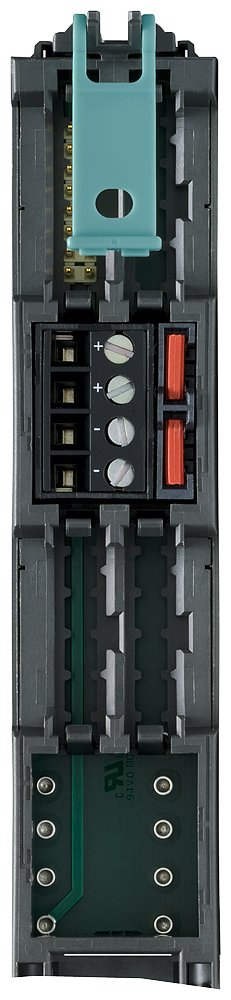

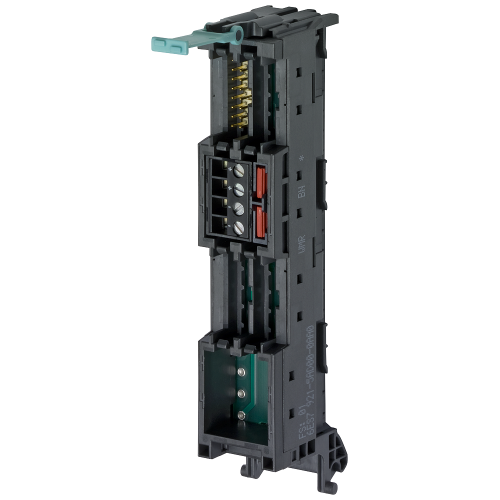

Front connector module with 1x16 pole IDC connector for digital 2 A output modules of the S7-1500 Potential supply over Screw terminal
No accessories available for this product.
No alternatives available for this product.
Product
Manufacturer Material ID -
6ES7921-5AD00-0AA0
Net Weight -
0.09kg
Additional Product Information
Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121402
Technical Specification
Rated voltage -
24 Volt
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Rated current In -
1 Ampere
Number of poles -
40
