6ES79242AA200AC0

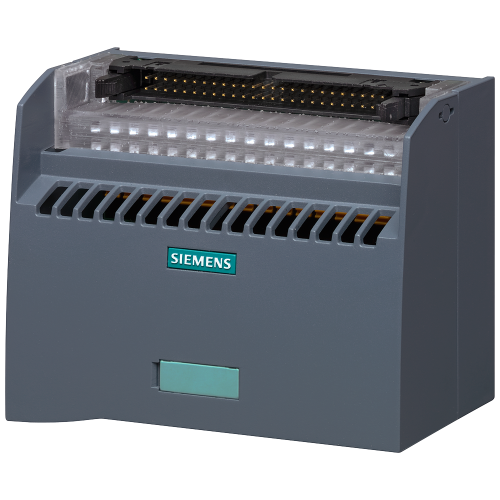

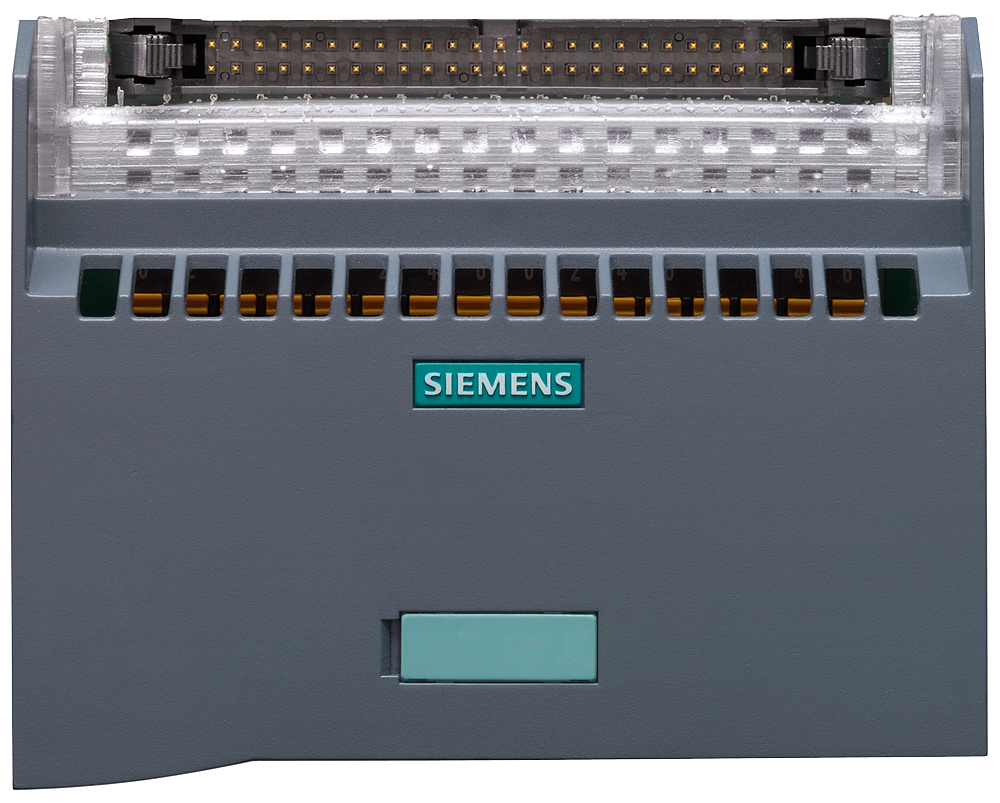

Connection module TP1 32 channels a. 4x2 terminals f. Potential supply Type: Push-in terminal withou

Manufacturer's No: 6ES7924-2AA20-0AC0     Manufacturer: Siemens
Connection module TP1 32 channels a. 4x2 terminals f. Potential supply Type: Push-in terminal withou

View 3D

Availability Back Order

£40.00
  • Connection module TP1 with 32 channels
  • Type: Push-in terminal without LED
  • 4x2 terminals
  • 50 pole IDC connector for cable


Product

Manufacturer Material ID -
6ES7924-2AA20-0AC0
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
RO
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

Connectable conductor cross section solid-core -
- Square millimetre
Length -
76 Millimetre
Operation temperature -
0 Degrees celsius
Width/grid dimension -
100 Millimetre
Height at lowest possible mounting height -
60 Millimetre
Connection position -
Above
Mounting method -
DIN rail (top hat rail) 35 mm
Colour lamp -
None
Type of electrical connection 2 -
Insulation piercing connection
LED switching for -
PNP
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Inflammability class of insulation material acc. with UL94 -
V1
Material insulation body -
Other
Number of clamp positions per level -
1
Number of levels -
1
Operating temperature -
0 Degrees celsius
Rated current In -
1 Ampere
Rated voltage -
50 Volt
Type of electrical connection 1 -
Plug-in connection
With power supply function -

Availability Back Order

£40.00
