6GK53284FS003RR3

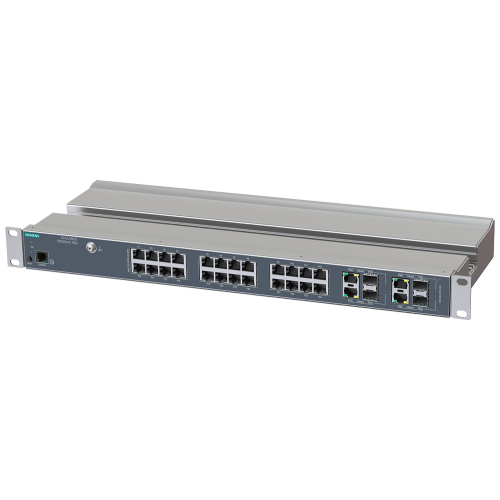

SCALANCE XR328-4C WG, managed L2 switch, 24xRJ45, 4xCombo, 230VAC, no cULus/Ex

Manufacturer's No: 6GK5328-4FS00-3RR3     Manufacturer: Siemens
SCALANCE XR328-4C WG, managed L2 switch, 24xRJ45, 4xCombo, 230VAC, no cULus/Ex

View 3D

Availability Back Order

£1,420.05
  • SCALANCE XR328-4C WG managed IE switch
  • 24 x 10/100 Mbit/s electrical ports
  • 4 x 1000 Mbit/s combo ports (electrical or optical)
  • LED diagnostics and reset button
  • Console port for configuration
  • PROFINET device with network management function
  • Redundancy manager for improved reliability
  • Power supply: 240 V AC (85 – 264 V)
  • IEC 62443-4-2 certified

Accessories



Product

Manufacturer Material ID -
6GK5328-4FS00-3RR3
Net Weight -
3.00kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5A991X
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

Number of ports 100 Mbps SC -
-
Number of ports 100 Mbps ST -
-
Power over Ethernet -
UN
Number of ports PoE -
-
Max. PoE power -
- Watt
Number of ports 1000 Mbps POF -
-
Number of max. stackable switches -
5
Degree of protection (IP) -
IP30
Mounting method -
482.6 mm (19 inch) mounting
Number of ports 1000 Mbps RJ45 -
0
Ethernet -
Number of ports 10/100 Mbps RJ45 -
24
Number of ports 1000 Mbps SC (SX) -
0
Number of ports 1000 Mbps SC (LX) -
0
Number of module slots -
0
Number of maximum stackable switches -
5
Number of ports 10/100 Mbps M12 -
0
Number of ports 10/100/1000 Mbps RJ45 -
0
Number of ports 1000 Mbps GBIC -
0
Number of ports 1000 Mbps Mini GBIC -
0
Number of combination-ports RJ45/Mini GBIC -
4
Layer 2 -
Number of other ports -
0
Number of ports 100/1000 Mbps Mini GBIC -
0
Number of ports 10 Gbps Mini GBIC -
0
Number of ports 100 Mbps POF -
0
Number of ports 10 Gbps RJ45 -
0
Number of ports 40 Gbps Mini GBIC -
0
Number of ports 100 Gbps Mini GBIC -
0
Degree of protection (IP rating) -
IP30
Depth -
177 Millimetre
Height -
44 Millimetre
Manageable -
Width -
483 Millimetre

Availability Back Order

£1,420.05
