6GT28910CH50

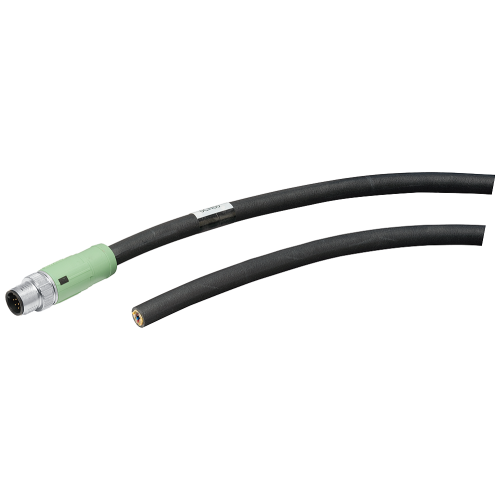

SIMATIC RF600 DI/DO Cable connector for RF650R reader, RF670R, RF68XR, M12, 12x 0.14 mm2, shielded,

Manufacturer's No: 6GT2891-0CH50     Manufacturer: Siemens
SIMATIC RF600 DI/DO Cable connector for RF650R reader, RF670R, RF68XR, M12, 12x 0.14 mm2, shielded,

Availability Back Order

£212.27
  • Cable connector for SIMATIC RF650R, RF670R, RF68XR readers
  • M12 connector with 12x 0.14 mm2 wires
  • Shielded cable made of PUR material
  • IP67 rated for protection
  • Length of 5 meters
  • Open on one side


Product

Manufacturer Material ID -
6GT2891-0CH50
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
85444210
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
26121609

Technical Specification

AWG-size -
-
Anti-kink sleeve -
UN
Type of connector connection 1 -
UN
Type of connector connection 2 -
UN
Cable construction -
UN
Colour anti-kink sleeve -
UN
Case connector connection 1 -
UN
Case connector connection 2 -
UN
Material connector of connector housing connection 1 -
UN
Material connector of connector housing connection 2 -
UN
NVP value -
- Percentage
Cable type -
S/UTP
Pin assignment -
1:1
Length -
5 Metre
Colour outer sheath -
Black
Degree of protection (IP) -
Other
Core insulation material -
Polyvinyl chloride (PVC)
Flame retardant -
No
Stranding element -
Pairs
Sheath material -
Polyurethane (PUR)
Protective sheath -
No
Reaction-to-fire according to EN 13501-6: Class -
None
Sheath material specification -
Other
Category -
Other
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
85 Millimetre
Min. permitted bending radius, moving application/free movement -
85 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
85 Millimetre
Number of cores -
12
Outer diameter approx. -
8.5 Millimetre
Overall screen type -
Braiding
Permitted cable outer temperature after assembling without vibration -
-5 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-30 Degrees celsius
Sheath colour -
Black

Availability Back Order

£212.27
