6SL32101NE315AL0

SINAMICS G120 POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP20 3AC380-480V +10/-10% 47-

Manufacturer's No: 6SL3210-1NE31-5AL0     Manufacturer: Siemens
SINAMICS G120 POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP20 3AC380-480V +10/-10% 47-

Availability On Request

POA

This product has been superseded by

6SL32101RE315AL0

Please check compatibility before purchasing.

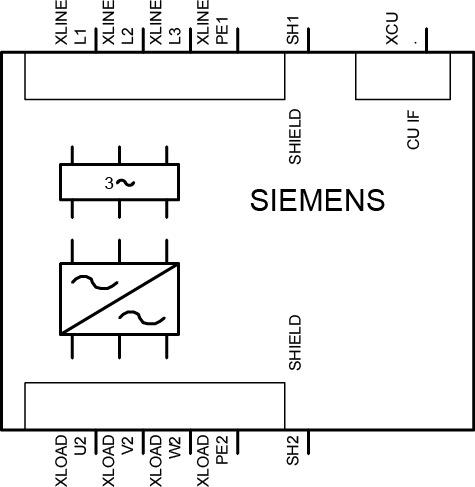

  • Power Module: SINAMICS G120 PM230
  • Voltage: 3AC 380-480V +/-10%
  • Frequency: 47-63Hz
  • Output Overload: 75kW for 110% 60s, 100% 240s
  • Ambient Temperature: 0 to +40°C
  • Dimensions: 934 x 350 x 316 mm (H x W x D)
  • Protection: IP20 with built-in Class A filter
  • Compatibility: Approved for CU240B/E-2 and CU230P-2 firmware version V4.4
  • Note: PM230 does not support safety features.

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3210-1NE31-5AL0
Net Weight -
61.50kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
Export Control Regulations -
AL: 9I999KP / ECCN: EAR99H
Minimum Order Quantity -
1
UNSPSC -
32121705

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Number of interfaces PROFINET -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Mains frequency -
50/60 Hz
Application in industrial area permitted -
Degree of protection (IP rating) -
IP20
Depth -
316 Millimetre
Height -
934 Millimetre
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
55 Kilowatt
Max. output at quadratic load at rated output voltage -
75 Kilowatt
Max. output frequency -
550 Hertz
Nominal output current I2N -
145 Ampere
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Type of converter -
U converter
Width -
350 Millimetre

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

6SL32101RE315AL0

Please check compatibility before purchasing.
