6XV18762A

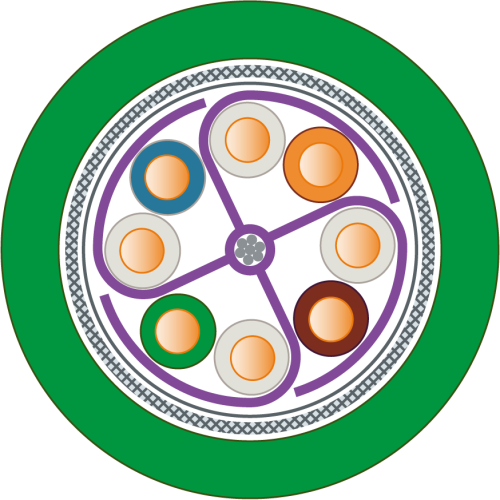

IE FC TP standard cable GP 4x2, AWG 25, CAT7, sold by the meter, min. 20 m

Manufacturer's No: 6XV1876-2A     Manufacturer: Siemens
IE FC TP standard cable GP 4x2, AWG 25, CAT7, sold by the meter, min. 20 m

Availability On Request

£4.00
  • Cable Type: CAT7
  • Configuration: 4 pairs of 2 wires
  • Connectors: IE FC RJ45 plug 4x2, IE FC M12 plug PRO 4x2
  • Wire Gauge: AWG25
  • Sold by the meter
  • Package: Maximum 2000 meters
  • Minimum Order Quantity: 20 meters

Accessories



Product

Manufacturer Material ID -
6XV1876-2A
Net Weight -
0.07kg

Additional Product Information

Country of Origin -
DE
UNSPSC -
26121629

Technical Specification

Category -
7
Conductor Diameter -
0.45 Millimetre
Conductor surface -
Bare
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
80 Millimetre
Min. permitted bending radius, moving application/free movement -
80 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
80 Millimetre
Number of cores -
8
Number of stranding elements -
4
NVP value -
69 Percentage
Outer diameter approx. -
8 Millimetre
Overall screen type -
Foil + braiding
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-30 Degrees celsius
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath colour -
Green
Stranding element -
Pairs

Availability On Request

£4.00
