6XV18782G

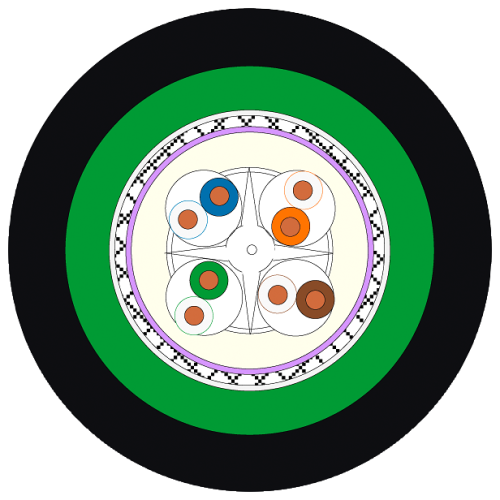

IE TP ground cable 4x2 Extension ground cable, CAT6A, 8-core, shielded, cable for Connection to IE F

Manufacturer's No: 6XV1878-2G     Manufacturer: Siemens
IE TP ground cable 4x2 Extension ground cable, CAT6A, 8-core, shielded, cable for Connection to IE F

Availability On Request

£8.00
  • IE TP ground cable 4x2 underground cable
  • CAT6A
  • 8-core, shielded
  • Cable for Connection to IE FC RJ45 plug 4x2
  • AWG24
  • Sold by the meter
  • Maximum delivery unit: 1000 meters
  • Minimum order quantity: 20 meters

Accessories



Product

Manufacturer Material ID -
6XV1878-2G
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
20
UNSPSC -
26121629

Technical Specification

Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Colour outer sheath -
Other
Diameter conductor -
0.51 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Polyvinyl chloride (PVC)
Reaction-to-fire class according to EN 13501-6 -
Fca
Specification material outer sheath -
Other
Core insulation material -
Other
Flame retardant -
No
Sheath colour -
Other
Sheath material -
Polyvinyl chloride (PVC)
Conductor category -
Class 1 = solid
Protective sheath -
No
Stranding -
Bundle
Sheath material specification -
Other
Category -
6
Conductor Diameter -
0.51 Millimetre
Conductor surface -
Bare
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
84 Millimetre
Min. permitted bending radius, moving application/free movement -
84 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
84 Millimetre
Number of cores -
8
Number of stranding elements -
4
NVP value -
67 Percentage
Outer diameter approx. -
10.5 Millimetre
Overall screen type -
Foil + braiding
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Reaction-to-fire according to EN 13501-6: Class -
Fca
Stranding element -
Pairs

Availability On Request

£8.00
