710001

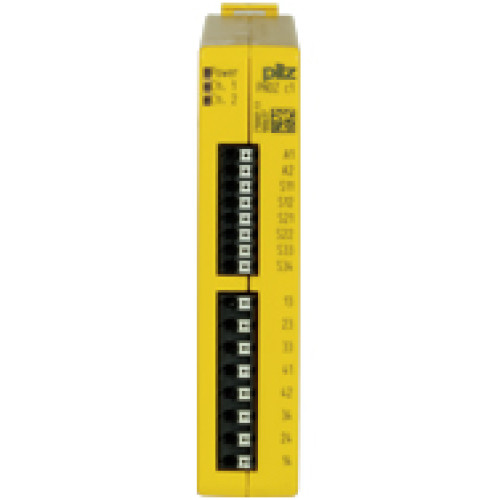

PNOZcompact safety relay (standalone) inputs: 2-channel wiring with detection of shorts across contacts

Manufacturer's No: PNOZ c1 24VDC 3n/o 1n/c     Manufacturer: Pilz
PNOZcompact safety relay (standalone) inputs: 2-channel wiring with detection of shorts across contacts

Availability On Request

£146.74
  • PNOZcompact safety relay (standalone)
  • Inputs: 2-channel wiring with short circuit detection
  • Manual/automatic start functionality
  • Outputs: 3 Normally Open (N/O), 1 Normally Closed (N/C)
  • Supply Voltage: 24 V DC
  • Width: 22.5 mm
  • Spring-loaded terminals located at the front
  • Monitoring of E-STOP and safety gates


Product

Manufacturer Material ID -
PNOZ c1 24VDC 3n/o 1n/c
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Model -
Basic device
With start input -
With feedback circuit -
Number of outputs, safety related, undelayed, with contact -
3
Number of outputs, signalling function, undelayed, with contact -
1
Rail mounting possible -
Suitable for monitoring of magnetic switches -
Suitable for monitoring of proximity switches -
Suitable for monitoring of emergency-stop circuits -
Suitable for monitoring of position switches -
Suitable for monitoring of valves -
Performance level acc. to EN ISO 13849-1 -
Level e
Evaluation inputs -
2-channel
SIL according to IEC 61508 -
3
Depth -
100 Millimetre
Height -
105 Millimetre
Type of electric connection -
Spring clamp connection
Width -
22.5 Millimetre
With approval for TÜV -
Pilz

Availability On Request

£146.74
