722-246/005-000/039-000

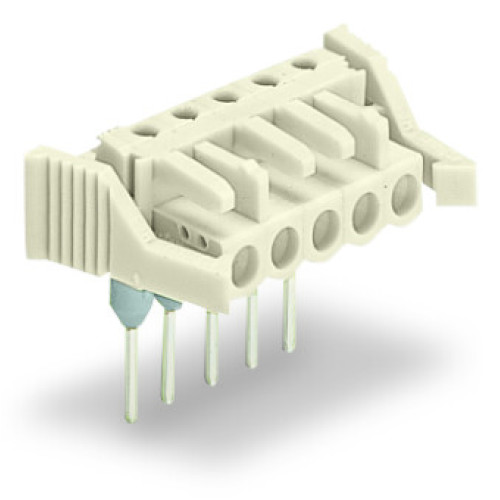

Female connector for rail-mount terminal blocks, 0.6 x 1 mm pins, angled, light gray

Manufacturer's No: 722-246/005-000/039-000     Manufacturer: WAGO
Female connector for rail-mount terminal blocks, 0.6 x 1 mm pins, angled, light gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£10.52
  • Female connector for rail-mount terminal blocks
  • 16-pole with 0.6 x 1 mm angled pins
  • Pin spacing of 5 mm
  • 100% protected against mismating
  • Equipped with a locking lever
  • Color: light gray

Accessories

Spacer of same profile, suitable for 3-conductor terminal blocks of horizontal type, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-650/056-000
Price £0.70
On Request


Product

Manufacturer Material ID -
722-246/005-000/039-000
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Length -
18.25 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
11.6 Millimetre
Connection position -
Above
Colour -
Grey
Depth -
18.25 Millimetre
Height -
11.6 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
16
Operating temperature -
-60 Degrees celsius
Rated current In -
12 Ampere
Rated voltage -
320 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre
