730-113

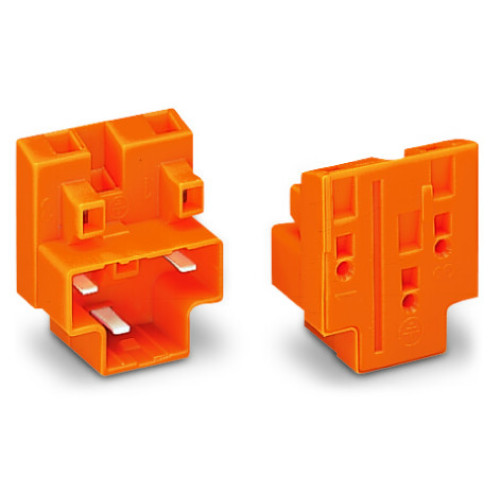

Male connector, 3-pole, orange

Manufacturer's No: 730-113     Manufacturer: WAGO
Male connector, 3-pole, orange

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£3.02
  • Male connector
  • 3-pole
  • Color: Orange

Accessories



Product

Manufacturer Material ID -
730-113
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Connection position -
UN
Length -
35.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
30 Millimetre
Height at lowest possible mounting height -
22.5 Millimetre
Colour -
Orange
Connectable conductor cross section fine-strand with cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.25 Square millimetre
Depth -
22.5 Millimetre
Height -
35.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
3
Operating temperature -
-60 Degrees celsius
Rated current In -
10 Ampere
Rated voltage -
630 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
30 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£3.02
