756-3102/040-020

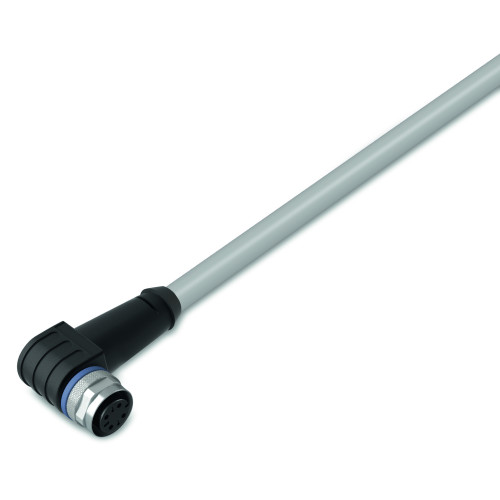

Power Supply Cable, Angled, 2M Fitted On One End Gray

Manufacturer's No: 756-3102/040-020     Manufacturer: WAGO
Power Supply Cable, Angled, 2M Fitted On One End Gray

Availability Back Order

POA
  • Power cable
  • M12A socket
  • Angled
  • 4-pole
  • Length: 2 meters


Product

Manufacturer Material ID -
756-3102/040-020
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
26121629

Technical Specification

Core insulation material -
UN
Circuit integrity -
UN
Diameter conductor -
- Millimetre
Number of stranding elements -
-
Protective sheath -
UN
Stranding -
UN
NVP value -
- Percentage
Reaction-to-fire class according to EN 13501-6 -
UN
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Min. permitted bending radius, moving application with forced guidance -
- Millimetre
Min. permitted bending radius, moving application/free movement -
- Millimetre
Min. permitted bending radius, stationary application/permanent installation -
- Millimetre
Specification material outer sheath -
UN
UV resistant -
Nominal cross section conductor -
0.75 Square millimetre
Core identification -
Colour
Flame retardant -
In accordance with EN 60332-1-2
Stranding element -
No
Colour outer sheath -
Grey
Category -
Other
Screen over stranding element -
None
Screen over stranding -
None
Material outer sheath -
Polyurethane (PUR)
Conductor category -
Class 5 = flexible
AWG-size -
18
Number of cores -
4
Outer diameter approx. -
6.2 Millimetre
Halogen free (acc. EN 60754-1/2) -
Conductor surface -
Bare
Specification core insulation -
Polyethylene (PE)
Material of contact surface -
Other
Degree of protection (IP rating) -
IP67
Type of electrical connection, field-sided -
M12
Material contact body -
CuZn
Colour cable sheath -
Grey
Cable length -
2 Metre
Continuity resistance -
10 Milli-Ohm
Halogen free -
Material of cable sheath -
Polyurethane (PUR)
Number of poles -
4
Permitted cable outer temperature after assembling without vibration -
-30 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-30 Degrees celsius
Positioning cable feed, field-sided -
Angled
Rated current In -
4 Ampere
Rated voltage -
250 Volt
Type of plug-in contact, field sided -
Female (bus)

Availability Back Order

POA
