769-238/281-410

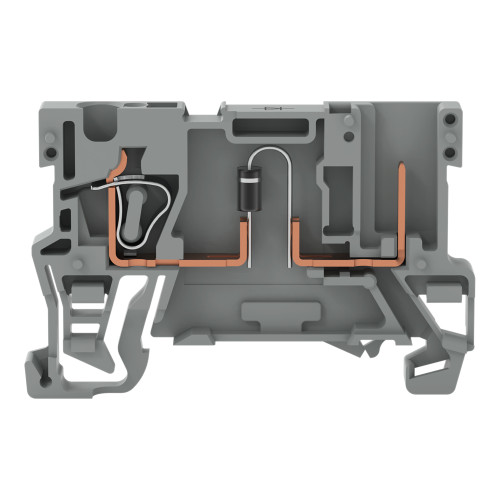

1-conductor/1-pin component carrier terminal block, with diode 1N4007, anode, left side, gray

Manufacturer's No: 769-238/281-410     Manufacturer: WAGO
1-conductor/1-pin component carrier terminal block, with diode 1N4007, anode, left side, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£3.58
  • Terminal block with 1 conductor and 1 pin
  • Includes diode 1N4007 with anode on the left side
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Connection capacity of 4 mm²
  • Features CAGE CLAMP® technology
  • Color: gray


Product

Manufacturer Material ID -
769-238/281-410
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85234925
Country of Origin -
DE
Minimum Order Quantity -
100
UNSPSC -
39121402

Technical Specification

Length -
52.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
28.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
28.5 Millimetre
Height -
52.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
0.5 Ampere
Rated voltage -
250 Volt
Type of component -
Diode
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Plug-in connection
Width -
5 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£3.58
