769-505

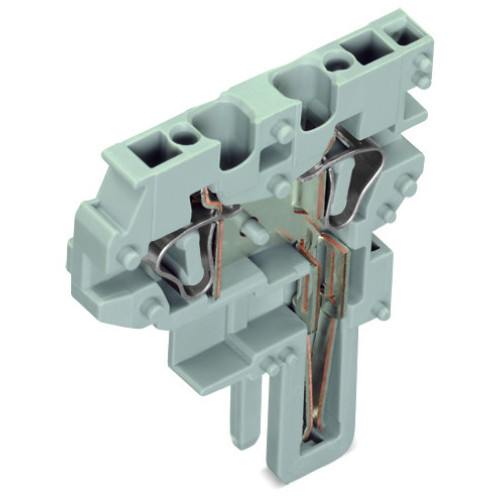

Center module for 2-conductor female connector, CAGE CLAMP®, 4 mm², gray

Manufacturer's No: 769-505     Manufacturer: WAGO
Center module for 2-conductor female connector, CAGE CLAMP®, 4 mm², gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£1.56
  • Center module for 2-conductor female connector
  • Features CAGE CLAMP® technology
  • Accommodates wires up to 4 mm²
  • Pin spacing of 5 mm
  • 1-pole configuration with coding finger
  • Color: gray


Product

Manufacturer Material ID -
769-505
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85234925
Country of Origin -
PL
Minimum Order Quantity -
250
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
35.9 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
45.2 Millimetre
Connection position -
Above
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
45.2 Millimetre
Halogen free -
Height -
35.9 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
2
Number of poles -
1
Operating temperature -
105 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£1.56
