769-640

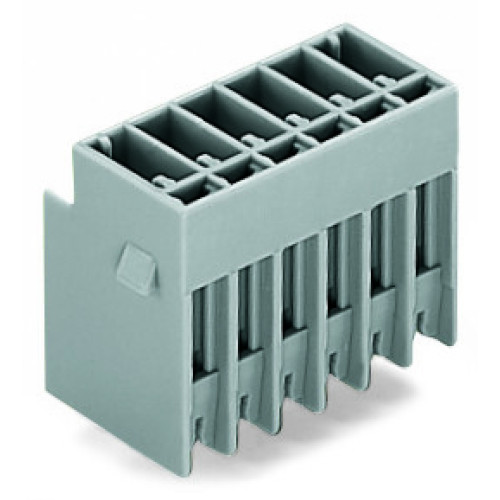

Male Connector, With Straight Solder Pins Vertical PCB Mounting Gray

Manufacturer's No: 769-640     Manufacturer: WAGO
Male Connector, With Straight Solder Pins Vertical PCB Mounting Gray

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£2.29
  • THT male header
  • 1.0 x 1.0 mm solder pin, straight
  • Pin spacing: 5 mm
  • 10-pole
  • Color: gray

Accessories



Product

Manufacturer Material ID -
769-640
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85234925
Country of Origin -
DE
Minimum Order Quantity -
25
UNSPSC -
39121402

Technical Specification

Over voltage category -
UN
Diameter connection pin -
- Millimetre
Colour housing -
Grey
Operation temperature -
-35 Degrees celsius
Angle PCB/contact -
90° (upwards vertical)
Connector model -
Free connector
Contact type -
Pin
Housing colour -
Grey
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
3.6 Millimetre
Material insulation body -
Thermoplastic
Material of contact surface -
Tin
Modular spacing connections -
5 Millimetre
Modular spacing contacts -
5 Millimetre
Number of plug-in contact rows -
1
Number of poles -
10
Operating temperature -
-35 Degrees celsius
Pollution degree -
3
Rated current In -
32 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Suitable for PCB thickness -
1.5 Millimetre
Type of banding -
None
Type of connection -
Flexible PCB-connector
Type of electric connection -
Soldering connection
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£2.29
