770-132/041-000

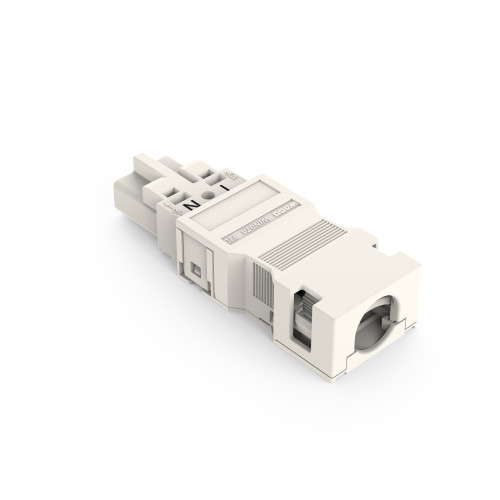

Plug, with strain relief housing, 2-pole, white

Manufacturer's No: 770-132/041-000     Manufacturer: WAGO
Plug, with strain relief housing, 2-pole, white

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£2.56
  • Plug with strain relief housing
  • 2-pole
  • Cod. A
  • Wire size: 4.00 mm²
  • Color: White


Product

Manufacturer Material ID -
770-132/041-000
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
39269097
Country of Origin -
DE
Minimum Order Quantity -
25
UNSPSC -
39121402

Technical Specification

Locking mechanism -
Separate
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Pole codification -
L, N
Colour coding/contact insert -
White
Cable diameter -
7 Millimetre
Connection cross section (fine-strand) -
0.5 Square millimetre
Connection cross section (solid-core) -
0.5 Square millimetre
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.08806 Kilowatthour
Halogen free -
Height -
15.9 Millimetre
Housing material -
Polyamide (PA)
Length -
71 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Plug
Number of connections per pole -
2
Number of poles -
2
Pollution degree -
3
Rated current -
25 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Surface finish contacts -
Tinned
Type of locking -
Separate
Width -
24.6 Millimetre
With strain relief -
