770-255

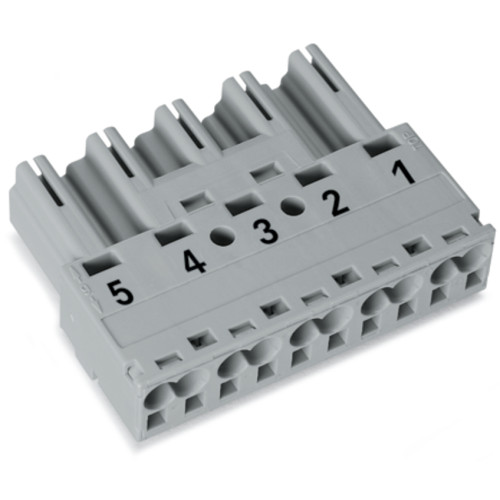

Plug, 5-pole, Cod. B, gray

Manufacturer's No: 770-255     Manufacturer: WAGO
Plug, 5-pole, Cod. B, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£2.90
  • Plug type: 5-pole
  • Cod. B
  • Wire size: 4.00 mm²
  • Color: Gray


Product

Manufacturer Material ID -
770-255
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121402

Technical Specification

Cable diameter -
- Millimetre
Locking mechanism -
Separate
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Pole codification -
1, 2, 3, 4, 5
Colour coding/contact insert -
Grey
Connection cross section (fine-strand) -
0.5 Square millimetre
Connection cross section (solid-core) -
0.5 Square millimetre
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.09083 Kilowatthour
Height -
12.9 Millimetre
Housing material -
Polyamide (PA)
Length -
37.5 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Plug
Number of connections per pole -
2
Number of poles -
5
Pollution degree -
3
Rated current -
25 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Surface finish contacts -
Tinned
Type of locking -
Separate
Width -
50 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£2.90
