770-605

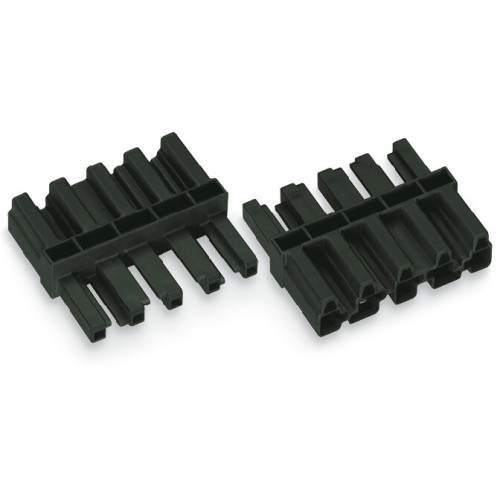

Intermediate coupler, 5-pole, Cod. A, black

Manufacturer's No: 770-605     Manufacturer: WAGO
Intermediate coupler, 5-pole, Cod. A, black

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£2.41
  • Type: Intermediate Coupler
  • Number of Poles: 5
  • Color: Black
  • Compatibility: Sockets and Plugs
  • Product Code: A


Product

Manufacturer Material ID -
770-605
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
100
UNSPSC -
39121402

Technical Specification

Pole codification -
UN
Phase pickup -
UN
Locking mechanism -
None
Material housing -
Polyamide (PA)
Continuity resistor -
0.5 Milli-Ohm
Degree of protection (IP) -
IP20
Colour coding/contact insert -
Black
Colour of the separate adapter piece -
Without adapter piece
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.04833 Kilowatthour
Halogen free -
Height -
11.6 Millimetre
Housing material -
Polyamide (PA)
Length -
40 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Mounting possibility -
No
Number of inputs -
5
Number of outputs -
5
Number of poles -
5
Pollution degree -
3
Rated current -
25 Ampere
Rated current to luminaire -
25 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Surface finish contacts -
Tinned
Type of distributor -
Intermediate coupling
Type of integrated switching -
None
Type of locking -
None
Width -
47 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£2.41
