770-640

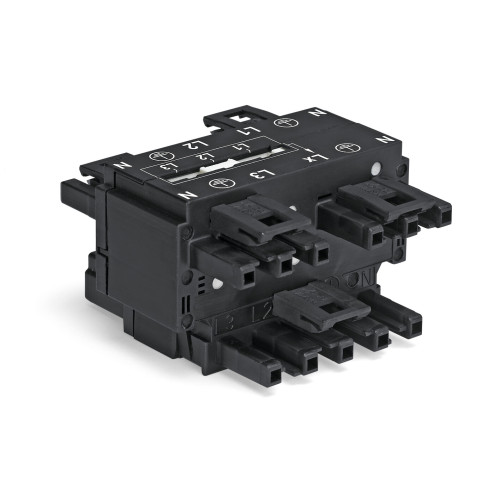

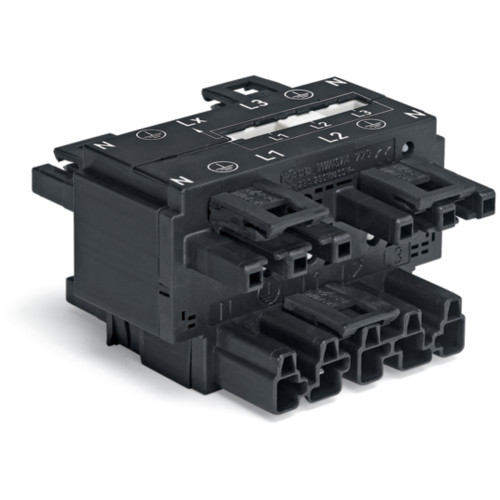

Three-phase to single-phase distribution connector, with phase selection, 5-pole/3-pole, Cod. A, 1 i

Manufacturer's No: 770-640     Manufacturer: WAGO
Three-phase to single-phase distribution connector, with phase selection, 5-pole/3-pole, Cod. A, 1 i

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£20.91
  • Three-phase to single-phase distribution connector
  • Phase selection feature
  • 5-pole/3-pole configuration
  • Cod. A model
  • 1 input and 5 outputs
  • Color: black

Accessories

Mounting plate, 5-pole, for distribution connectors, Plastic, black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-625
Price £0.50
Back Order

Lockout cap, 12-pole, separable, for sockets, Plastic, black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-201
Price £0.44
Back Order

Lockout cap, 12-pole, separable, for sockets, Plastic, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-221
Price £0.44
Back Order

Lockout cap, for plugs, 5-pole, separable, yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-360
Price £0.68
Back Order

Mounting plate, 5-pole, for distribution connectors, Plastic, white

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-675
Price £0.47
Back Order


Product

Manufacturer Material ID -
770-640
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
10
UNSPSC -
39121402

Technical Specification

Pole codification -
UN
Locking mechanism -
Integrated in plug-in connector
Material housing -
Polyamide (PA)
Continuity resistor -
0.5 Milli-Ohm
Degree of protection (IP) -
IP20
Colour coding/contact insert -
Black
Colour of the separate adapter piece -
Without adapter piece
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.37528 Kilowatthour
Halogen free -
Height -
58.2 Millimetre
Housing material -
Polyamide (PA)
Length -
62.75 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Mounting possibility -
No
Number of inputs -
5
Number of outputs -
17
Number of poles -
5
Phase pickup -
Selectable
Pollution degree -
3
Rated current -
25 Ampere
Rated current to luminaire -
25 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Surface finish contacts -
Tinned
Type of distributor -
Power current -/alternating current distributor
Type of integrated switching -
None
Type of locking -
Integrated in plug-in connector
Width -
64.8 Millimetre

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£20.91
