770-723/009-000

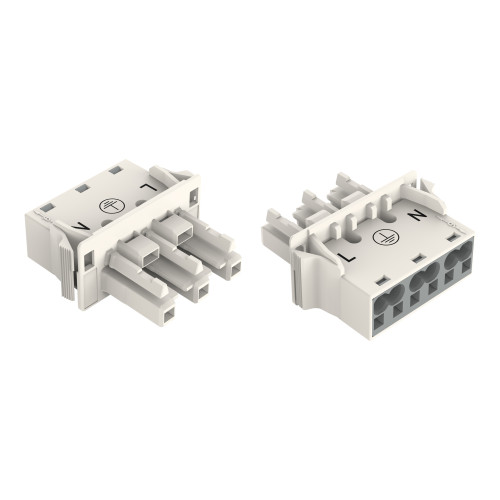

Snap-in socket, with protruding mating face, 3-pole, white

Manufacturer's No: 770-723/009-000     Manufacturer: WAGO
Snap-in socket, with protruding mating face, 3-pole, white

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.50

£1.85
  • Snap-in socket with protruding mating face
  • 3-pole configuration
  • Cod. A
  • Wire size: 4.00 mm²
  • Color: White


Product

Manufacturer Material ID -
770-723/009-000
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
45
UNSPSC -
39121402

Technical Specification

Length soldering pin -
- Millimetre
Wall thickness housing -
- Millimetre
Colour housing -
White
Locking mechanism -
None
Material housing -
Polyamide (PA)
Continuity resistor -
3 Milli-Ohm
Degree of protection (IP) -
IP20
Pole codification -
L, N, PE
Colour coding/contact insert -
White
Angle of inclination -
0 Degrees
Angle of plug -
Straight
Built-in version -
Snap-in/screw-in device
Colour of the separate adapter piece -
Without adapter piece
Connection cross section (fine-strand) -
0.5 Square millimetre
Connection cross section (solid-core) -
0.5 Square millimetre
Connection size thread -
No thread connection
Connection type -
Spring clamp connection
Contact material -
CuSn
Continuity resistance -
1 Milli-Ohm
Degree of protection (IP rating) -
IP20
Fire load -
0.01028 Kilowatthour
Halogen free -
Height -
17.5 Millimetre
Housing colour -
White
Housing material -
Polyamide (PA)
Length -
37.5 Millimetre
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Mechanical coding -
Model -
Bus
Number of connections per pole -
2
Number of poles -
3
Pollution degree -
3
Rated current -
25 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
250 Volt
Surface finish contacts -
Tinned
Type of locking -
None
Width -
30 Millimetre

Availability Available to order

Once added to the cart, you can split this pack for a charge of £16.50

£1.85
