770-854

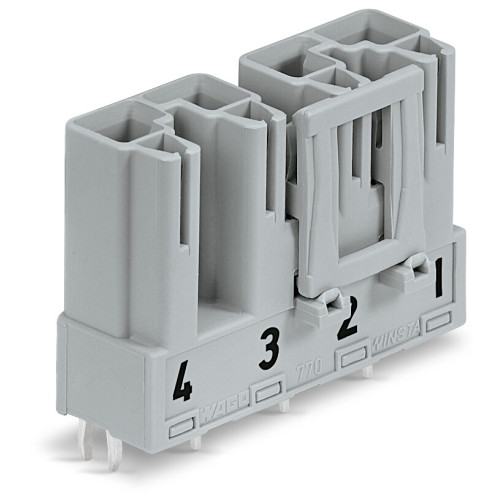

Plug for PCBs, straight, 4-pole, Cod. B, gray

Manufacturer's No: 770-854     Manufacturer: WAGO
Plug for PCBs, straight, 4-pole, Cod. B, gray

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£1.70
  • Plug type: PCB
  • Configuration: Straight
  • Number of poles: 4
  • Color: Gray
  • Product code: B

Accessories

Lockout cap, for plugs, 5-pole, separable, yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-360
Price £0.68
Back Order

Coding pin, for plugs, Plastic, gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 770-401
Price £0.08
Back Order


Product

Manufacturer Material ID -
770-854
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
PL
Minimum Order Quantity -
50
UNSPSC -
39121402

Technical Specification

Connection type -
UN
Cable diameter -
- Millimetre
Pole codification -
UN
Fire load -
- Kilowatthour
Connection cross section (fine-strand) -
- Square millimetre
Connection cross section (solid-core) -
- Square millimetre
Width -
37 Millimetre
Model -
Plug
Height -
26 Millimetre
Locking mechanism -
Integrated in plug-in connector
Rated current -
25 Ampere
Length -
11.7 Millimetre
Material housing -
Polyamide (PA)
Surface finish contacts -
Other
Mechanical coding -
Continuity resistor -
3 Milli-Ohm
Contact material -
Other
Degree of protection (IP) -
IP20
Number of connections per pole -
1
Colour coding/contact insert -
Grey
Max. continuous temperature resistance contact part -
85 Degrees celsius
Max. continuous temperature resistance strain relief -
105 Degrees celsius
Type of connection -
Flexible PCB-connector
Operating temperature -
-35 Degrees celsius
Over voltage category -
III
Angle PCB/contact -
90° (upwards vertical)
Connector model -
Free connector
Contact type -
Pin
Diameter connection pin -
1.28 Millimetre
Housing colour -
Grey
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
3.5 Millimetre
Material insulation body -
Polyamide (PA)
Material of contact surface -
Tin
Modular spacing connections -
10 Millimetre
Modular spacing contacts -
10 Millimetre
Number of plug-in contact rows -
1
Number of poles -
4
Pollution degree -
3
Rated current In -
25 Ampere
Rated surge voltage -
6 Kilovolt
Rated voltage -
400 Volt
Type of banding -
None
Type of electric connection -
Soldering connection
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact
