774181

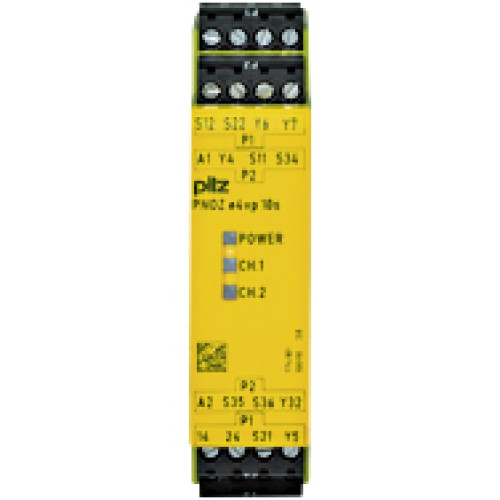

Safety relay (standalone) inputs: 2-channel wiring with detection of shorts across contacts

Manufacturer's No: PNOZ e4vp 10/24VDC 1so 1so t     Manufacturer: Pilz
Safety relay (standalone) inputs: 2-channel wiring with detection of shorts across contacts

Availability Available to order

POA
  • Standalone safety relay
  • Inputs: 2-channel wiring with short circuit detection
  • Outputs: 2 safety outputs + 1 auxiliary output (SC type)
  • Delayed automatic/monitored start
  • Operating voltage: 24 V DC
  • Width: 22.5 mm
  • Screw-type plug-in terminals
  • Suitable for connection between multiple devices
  • Designed for pressure-sensitive mat evaluation


Product

Manufacturer Material ID -
PNOZ e4vp 10/24VDC 1so 1so t
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Model -
Basic device
Release-delay -
0 Second
With feedback circuit -
Rail mounting possible -
Suitable for monitoring of tactile sensors -
Depth -
121 Millimetre
Height -
94 Millimetre
Type of electric connection -
Screw connection
Width -
22.5 Millimetre
With approval for TÜV -
Pilz

Availability Available to order

POA
