Contact expansion inputs: 1-channel wiring outputs: 4 N/O t-d UB = 24 V DC width: 22.5 mm

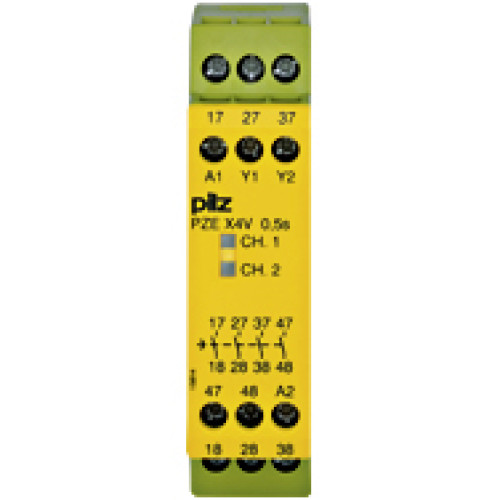

Manufacturer's No: PZE X4V 0,5/24VDC 4n/o fix     Manufacturer: Pilz
Contact expansion inputs: 1-channel wiring outputs: 4 N/O t-d UB = 24 V DC width: 22.5 mm

Availability Back Order

£152.31
  • Inputs: 1-channel wiring
  • Outputs: 4 N/O t-d
  • Supply Voltage: 24 V DC
  • Width: 22.5 mm
  • Screw terminals integrated
  • Delay-on de-energization contact block
  • Designed for contact expansion with safety-related control components
  • Delay time permanently set at 0.5 seconds


Product

Manufacturer Material ID -
PZE X4V 0,5/24VDC 4n/o fix
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Model -
Expansion device
Release-delay -
5 Second
Rail mounting possible -
Depth -
121 Millimetre
Height -
87 Millimetre
Type of electric connection -
Screw connection
Width -
22.5 Millimetre
With approval for TÜV -
With feedback circuit -
Pilz

Availability Back Order

£152.31
