780-637

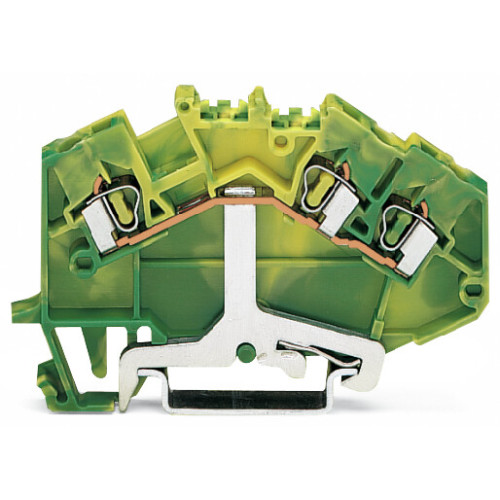

3-conductor ground terminal block, 2.5 mm², center marking, green-yellow

Manufacturer's No: 780-637     Manufacturer: WAGO
3-conductor ground terminal block, 2.5 mm², center marking, green-yellow

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£4.45
  • 3-conductor ground terminal block
  • Suitable for DIN-rail 35 x 15 and 35 x 7.5
  • Wire size: 2.5 mm²
  • Center marking for easy identification
  • Utilizes CAGE CLAMP® technology
  • Color: green-yellow


Product

Manufacturer Material ID -
780-637
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121402

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Length -
77 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
43.5 Millimetre
Connection position -
Inclined
Closing plate required -
Colour -
Green/yellow
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
43.5 Millimetre
Height -
77 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
1
Operating temperature -
105 Degrees celsius
PEN function possible -
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£4.45
