785-601

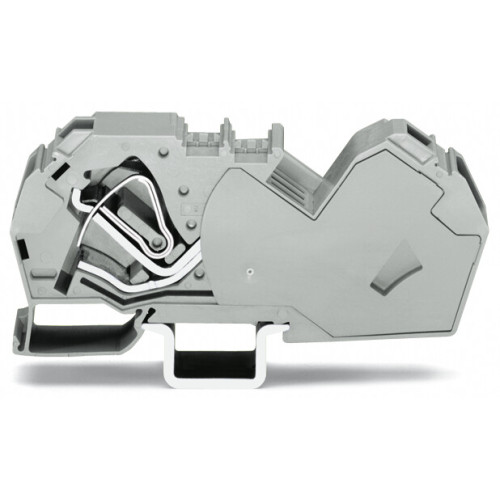

2-conductor through terminal block, 35 mm², with integrated end plate, gray

Manufacturer's No: 785-601     Manufacturer: WAGO
2-conductor through terminal block, 35 mm², with integrated end plate, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£10.61
  • Type: 2-conductor through terminal block
  • Wire Size: 35 mm²
  • Features integrated end plate for convenience
  • Side and center marking for easy identification
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Utilizes CAGE CLAMP® technology for secure connections
  • Color: Gray


Product

Manufacturer Material ID -
785-601
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
15
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Length -
114 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
16 Millimetre
Height at lowest possible mounting height -
44.5 Millimetre
Connection position -
Inclined
Colour -
Grey
Connectable conductor cross section fine-strand without cable end sleeve -
6 Square millimetre
Connectable conductor cross section multi-wired -
6 Square millimetre
Connectable conductor cross section solid-core -
6 Square millimetre
Depth -
44.5 Millimetre
Height -
114 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
125 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
16 Millimetre
