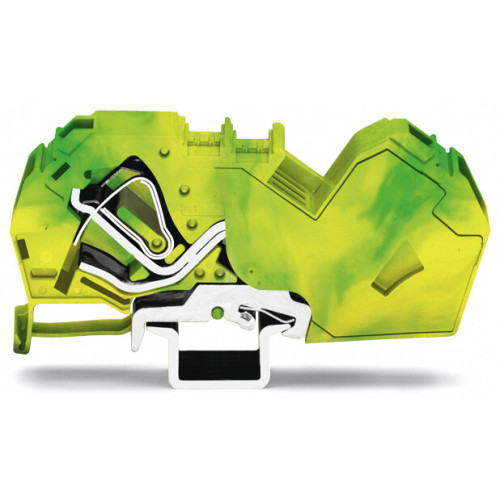

785-607

2-conductor ground terminal block, 35 mm², with integrated end plate, green-yellow

Manufacturer's No: 785-607     Manufacturer: WAGO
2-conductor ground terminal block, 35 mm², with integrated end plate, green-yellow

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£16.78
  • 2-conductor ground terminal block
  • 35 mm² capacity
  • Integrated end plate
  • Side and center marking
  • Compatible with DIN-rail 35 x 15 and 35 x 7.5
  • CAGE CLAMP® technology
  • Color: green-yellow


Product

Manufacturer Material ID -
785-607
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
15
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Length -
114 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
16 Millimetre
Height at lowest possible mounting height -
44.5 Millimetre
Connection position -
Inclined
Colour -
Green/yellow
Connectable conductor cross section fine-strand without cable end sleeve -
6 Square millimetre
Connectable conductor cross section multi-wired -
6 Square millimetre
Connectable conductor cross section solid-core -
6 Square millimetre
Depth -
44.5 Millimetre
Height -
114 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
PEN function possible -
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
16 Millimetre
