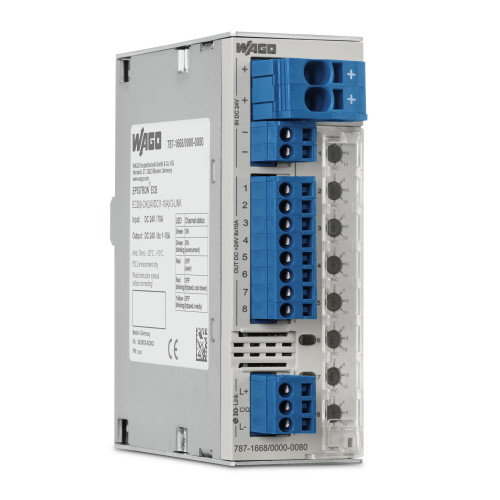

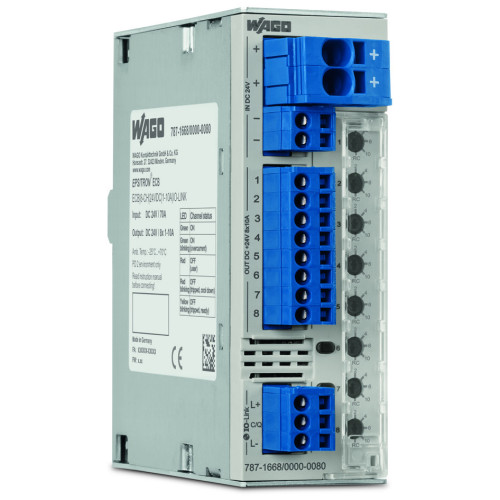

787-1668/000-080

electronic circuit breaker; 8-channel; 24 VDC input voltage; adjustable 1 … 10 A; IO-Link

Manufacturer's No: 787-1668/000-080     Manufacturer: WAGO
electronic circuit breaker; 8-channel; 24 VDC input voltage; adjustable 1 … 10 A; IO-Link

Availability Back Order

£258.208
List Price £322.76
  • Electronic circuit breaker
  • 8 channels
  • Input voltage: 24 VDC
  • Adjustable current range: 1A to 10A
  • IO-Link connectivity

Accessories

Miniature WSB Quick Marking System, Plain Marker Width 5 mm

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501
Price £2.82
Back Order


Product

Manufacturer Material ID -
787-1668/000-080
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Max. permitted off-delay time -
- Second
Min. adjustable off-delay time -
- Second
Rated control supply voltage Us at DC -
18 Volt
Rated control supply voltage at DC -
18 Volt
Voltage type for actuating -
DC
Current measurement range -
1 Ampere
Depth -
142.5 Millimetre
Height -
127 Millimetre
Max. permitted delay-on energization time -
100 Second
Min. adjustable delay-on energization time -
0.016 Second
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Single-phase over current possible -
Type of electric connection -
Spring clamp connection
Width -
42 Millimetre
With detachable clamps -
