787-612

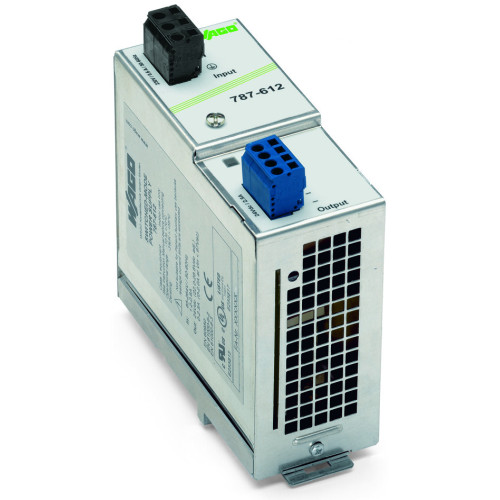

Switched-mode power supply, Classic, 1-phase

Manufacturer's No: 787-612     Manufacturer: WAGO
Switched-mode power supply, Classic, 1-phase

Availability On Request

POA
  • Switched-mode power supply
  • Classic design
  • 1-phase operation
  • Output voltage: 24 VDC
  • Output current: 2.5 A
  • Wire size: 2.50 mm²


Product

Manufacturer Material ID -
787-612
Net Weight -
0.62kg

Additional Product Information

Commodity Code -
85044082
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Built-in width -
- Millimetre
Power output -
- Watt
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
1st secondary output voltage -
22 Volt
Degree of protection (IP rating) -
IP20
Depth -
120 Millimetre
Height -
133 Millimetre
Max. output current 1 -
2.5 Ampere
Modular version -
Nominal value output current 1 -
2.5 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
90 Volt
Rated supply voltage at AC 60 Hz -
90 Volt
Rated supply voltage at DC -
130 Volt
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
AC/DC
Width -
51 Millimetre
Width in number of modular spacings -
3

Availability On Request

POA
