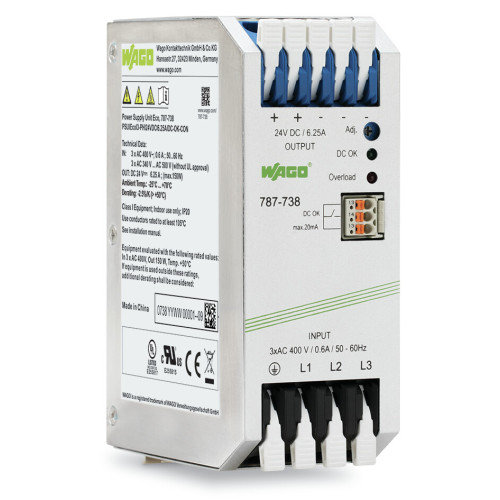

787-738

Switched-mode power supply; Eco; 3-phase; 24 VDC output voltage; 6.25 A output current; DC OK contact

Manufacturer's No: 787-738     Manufacturer: WAGO
Switched-mode power supply; Eco; 3-phase; 24 VDC output voltage; 6.25 A output current; DC OK contact

Availability In Stock

£94.72
List Price £118.40
  • Switched-mode power supply
  • Eco-friendly design
  • 3-phase input
  • 24 VDC output voltage
  • 6.25 A output current
  • DC OK contact

Accessories



Product

Manufacturer Material ID -
787-738
Net Weight -
0.84kg

Additional Product Information

Commodity Code -
85044082
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
32121701

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Built-in width -
- Millimetre
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
1st secondary output voltage -
22 Volt
Degree of protection (IP rating) -
IP20
Depth -
92 Millimetre
Height -
130 Millimetre
Max. output current 1 -
6.25 Ampere
Modular version -
Nominal value output current 1 -
6.25 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
150 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
360 Volt
Rated supply voltage at AC 60 Hz -
360 Volt
Rated supply voltage at DC -
500 Volt
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
AC/DC
Width -
50 Millimetre
Width in number of modular spacings -
3
