788-181

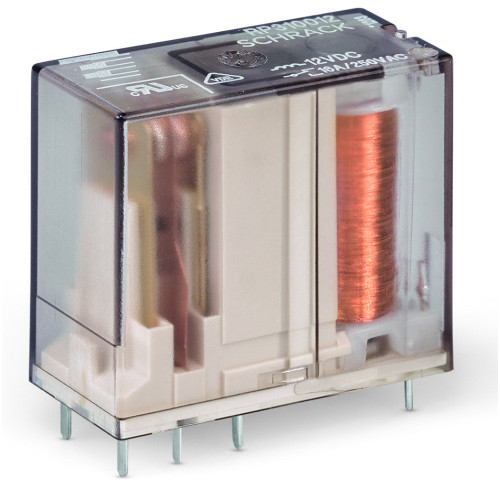

Basic relay, Nominal input voltage: 230 VAC, 2 changeover contacts, Limiting continuous current: 8 A

Manufacturer's No: 788-181     Manufacturer: WAGO
Basic relay, Nominal input voltage: 230 VAC, 2 changeover contacts, Limiting continuous current: 8 A

Availability Back Order

POA
  • Basic relay with 2 changeover contacts
  • Nominal input voltage: 230 VAC
  • Limiting continuous current: 8 A
  • Gold contacts for improved durability
  • Module dimensions: 13 mm (W) x 15 mm (H)

Accessories



Product

Manufacturer Material ID -
788-181
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
230 Volt
Rated control supply voltage Us at AC 60HZ -
230 Volt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Depth -
29 Millimetre
Drive, polarization -
Polarity free
Drive, switching attitude -
Mono stable
Height -
15.7 Millimetre
Nominal current -
8 Ampere
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at AC 50 Hz -
230 Volt
Rated control supply voltage at AC 60 Hz -
230 Volt
Type of electric connection -
Plug-in connection
Type of switch contact -
Single contact
Voltage type for actuating -
AC
Width -
12.7 Millimetre

Availability Back Order

POA
