792-800

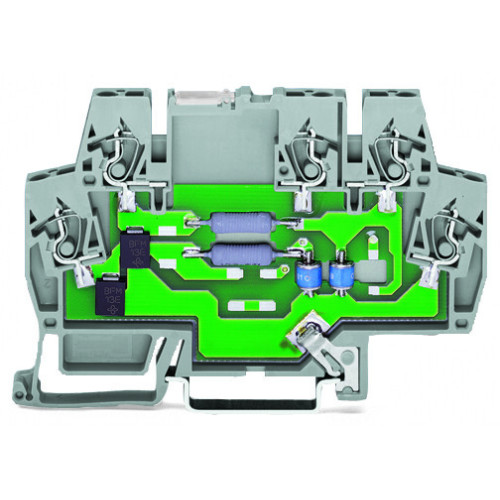

Surge suppression module for signal technology, Nominal voltage: 24 VDC, for 2 signal paths with common surge arrester

Manufacturer's No: 792-800     Manufacturer: WAGO
Surge suppression module for signal technology, Nominal voltage: 24 VDC, for 2 signal paths with common surge arrester

Availability On Request

£86.54
  • Surge suppression module for signal technology
  • Nominal voltage: 24 VDC
  • Designed for 2 signal paths with common surge arrester
  • Suitable for unbalanced interfaces
  • Two-stage protection
  • Width: 6 mm
  • Conductor cross-section: 2.50 mm²


Product

Manufacturer Material ID -
792-800
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85044082
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Construction size -
1 modular spacing
Category type 2 -
Voltage protection level L-N -
0.11 Kilovolt
Degree of protection (IP) -
IP20
Voltage protection level N-PE -
0.07 Kilovolt
Max. conductor cross section solid (solid, stranded) -
2.50 Square millimetre
Max. conductor cross section flexible (fine-strand) -
2.50 Square millimetre
Frequency -
- Megahertz
Lightning impulse current (10/350 µs) -
- kiloampere
Voltage protection level core/signal ground -
- Volt
Voltage protection level signal ground/protective ground -
- Volt
Nominal voltage AC -
- Volt
Max. continuous voltage AC -
23 Volt
Nominal discharge surge current (8/20) -
5 kiloampere
Assembly width -
6 Millimetre
Connection 1 -
Clamp
Limiting frequency -
6 Megahertz
Max. continuous voltage DC -
33 Volt
Max. voltage (Uc) -
23 Volt
Mounting method -
DIN rail (top hat rail) 35 mm
Nominal discharge surge current 8/20 µs (In) -
5 kiloampere
Nominal load current -
0.5 Ampere
Nominal voltage DC -
24 Volt
Number of conductors (without earthing) -
2
Signalling at the device -
None
Voltage protection level core/core -
110 Volt
Voltage protection level core/earth -
65 Volt

Availability On Request

£86.54
