7KT5603

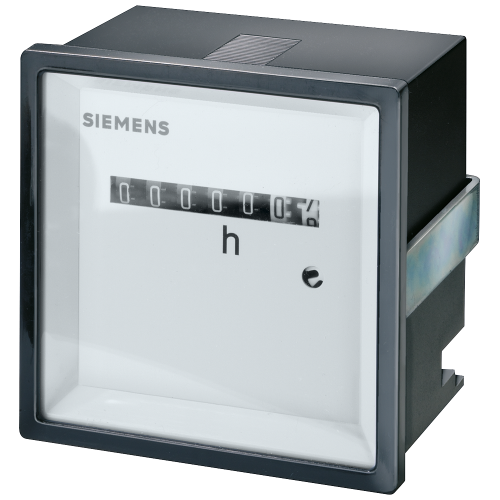

Time counter 72 x 72 mm 115 V AC 60 Hz without terminal cover.

Manufacturer's No: 7KT5603     Manufacturer: Siemens
Time counter 72 x 72 mm 115 V AC 60 Hz without terminal cover.

Availability On Request

£78.27
  • Time counter
  • Dimensions: 72 x 72 mm
  • Voltage: 115V
  • Frequency: 60Hz
  • Power source: AC
  • Terminal cover not included


Product

Manufacturer Material ID -
7KT5603
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
90291000
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
41112802

Technical Specification

Mounting to max. wall thickness -
- Millimetre
Diameter panel opening -
- Millimetre
Accuracy per day -
- Second
Built-in depth -
44 Millimetre
Degree of protection (IP) -
IP00
Mounting method -
Front mounting
Type of drive -
Quartz
Reset function -
None
Count area -
359999964 Hour
Degree of protection (NEMA) -
Other
Degree of protection (IP rating) -
IP00
Frequency input voltage -
60 Hertz
Front plate height -
72 Millimetre
Front plate width -
72 Millimetre
Height -
67.5 Millimetre
Input voltage -
115 Volt
Model -
Analogue
Number of digits -
7
Recess depth -
44 Millimetre
Voltage type -
AC
Width -
67.5 Millimetre
Width in number of modular spacings -
2

Availability On Request

£78.27
