7ML54302BE10

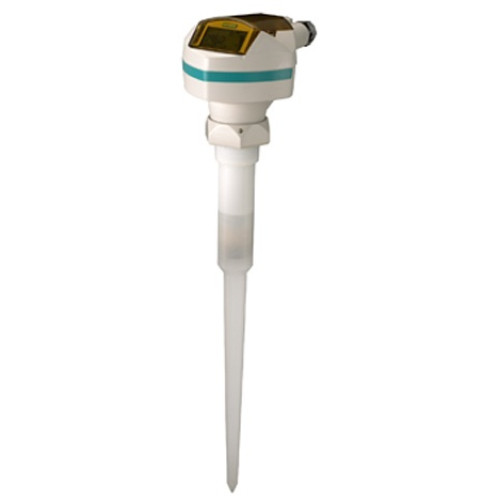

SITRANS Probe LR 2-wire, radar level transmitter for continuous monitoring of liquids and slurries in storage vessels to a range o

Manufacturer's No: 7ML5430-2BE10     Manufacturer: Siemens
SITRANS Probe LR 2-wire, radar level transmitter for continuous monitoring of liquids and slurries in storage vessels to a range of 20 m (66 ft). Max. 80 C (176 F) 1.5" BSPT, 100mm Shield, 4 to 20mA H

Availability On Request

POA
  • SITRANS Probe LR 2-wire radar level transmitter
  • Continuous monitoring of liquids and slurries in storage vessels
  • Range of 20 m (66 ft)
  • Max temperature: 80°C (176°F)
  • Enclosure / Cable Inlet: Plastic (PBT)
  • Antenna Type / Material: Polypropylene
  • Antenna Size: R 1-1/2 inch (BSPT)
  • Integral 100 mm shield
  • Approvals: ATEX II 1 G EEx ia IIC T4, Intrinsically Safe
  • Communication / Output: 4-20mA, HART

Read more

  • European Radio approvals (R&TTE)
  • 5.8 GHz


Product

Manufacturer Material ID -
7ML5430-2BE10
Net Weight -
4.50kg

Additional Product Information

Commodity Code -
90261029
Country of Origin -
CA
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
yes
UNSPSC -
41112500

Availability On Request

POA
