7ML54320GB201AA0

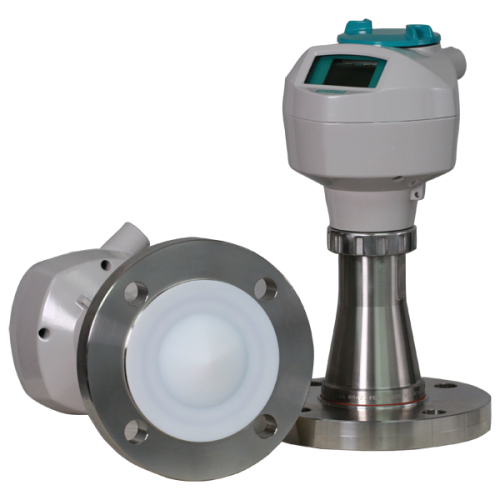

SITRANS LR250 Radar level transmitter with encapsulated horn and PTFE lens: continuous, non-contact, 20 m (66 ft) range, for liqui

Manufacturer's No: 7ML5432-0GB20-1AA0     Manufacturer: Siemens
SITRANS LR250 Radar level transmitter with encapsulated horn and PTFE lens: continuous, non-contact, 20 m (66 ft) range, for liquids and slurries i...

Availability Back Order

£3,651.00
  • SITRANS LR250 Radar level transmitter with encapsulated horn and PTFE lens
  • Continuous, non-contact measurement for liquids and slurries in the chemical industry
  • Range: 20 meters (66 feet)
  • Process Connection Material: Stainless steel 1.4404/1.4435
  • Flanged Process Connection Types: DN80 PN10/16 EN 1092-1 type B1 raised face
  • Communication: 4-20mA HART, start-up at <3.6mA
  • Enclosure Material: Aluminum with 2 X M20 x 1.5 cable inlets
  • Antenna Lens Material: TFM 1600 Flush lens
  • Approvals: CE, UKCA, CSA, FM, FCC, RED, RCM
  • Pressure Rating: Refer to pressure/temperature curves in instruction manual


Product

Manufacturer Material ID -
7ML5432-0GB20-1AA0
Net Weight -
10.10kg

Additional Product Information

Commodity Code -
90261029
Country of Origin -
CA
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43233603

Availability Back Order

£3,651.00
