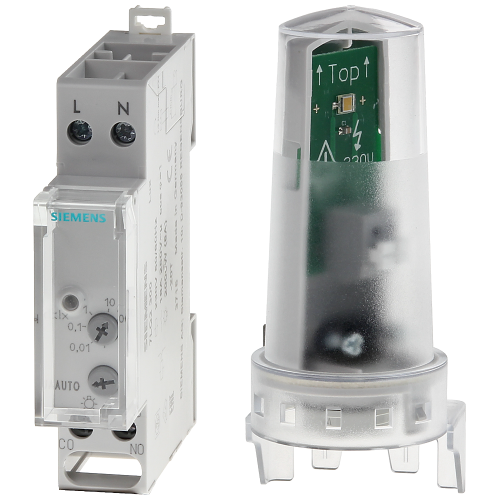

7LQ2300

Twilight switch with light sensor 230 V, 50/60 Hz, 1 MW, 100 kilolux, IP30

Manufacturer's No: 7LQ2300     Manufacturer: Siemens
Twilight switch with light sensor 230 V, 50/60 Hz, 1 MW, 100 kilolux, IP30

Availability On Request

£198.48
  • Twilight switch with built-in light sensor
  • Input voltage: 230V, 50/60Hz
  • Compact size: 1TE
  • Light sensitivity: 100klux
  • IP rating: IP30


Product

Manufacturer Material ID -
7LQ2300
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121601

Technical Specification

Built-in depth -
70 Millimetre
Degree of protection (IP) -
Other
Adjustment range brightness value -
2 Lux
Degree of protection (IP) light sensor -
IP55
Max. conductor length light sensor -
50 Metre
Max. incandescent lamp load -
2000 Watt
Max. load fluorescent lamp -
2000 Voltampere
Max. load fluorescent lamp (parallel compensated) -
1000 Voltampere
Mounting method -
DIN rail
Mounting method light sensor -
Wall surface mounted
Protection class light sensor -
II
Rated frequency -
50 Hertz
Rated switch current -
16 Ampere
Rated voltage -
230 Volt
Rated voltage light sensor -
230 Volt
Recess depth -
70 Millimetre
Width in number of modular spacings -
1

Availability On Request

£198.48
