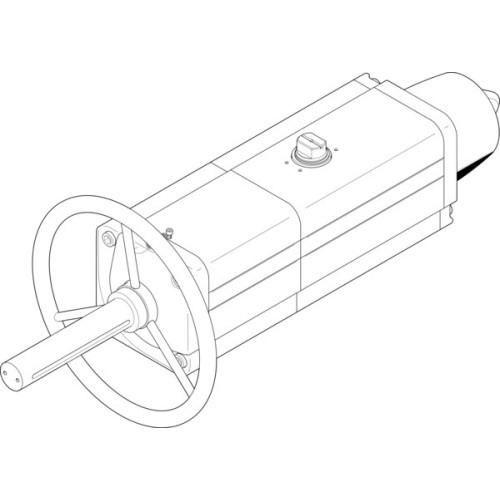

DAPS-0960-090-RS2-F14-MW Semi-rotary drive

Manufacturer's No: DAPS-0960-090-RS2-F14-MW     Manufacturer: Festo
DAPS-0960-090-RS2-F14-MW Semi-rotary drive

Availability Available to order

£4,249.99
  • Semi-rotary drive DAPS-0960-090-RS2-F14-MW
  • Size of actuator: 0960
  • Flange hole pattern: F14
  • Swivel angle: 92 degrees
  • Shaft connection depth: 48.5 mm
  • End position setting range: One selectable end position is adjustable
  • Fitting connection standard: ISO 5211
  • Mode of operation: Single-acting
  • Design: Scotch yoke system
  • Closing direction: Closes to the right

Read more

  • Safety Integrity Level (SIL): Up to SIL 2 High Demand mode, SIL 2 Low Demand mode
  • Supply pressure for spring strength: 0.35 MPa (3.5 bar)
  • Operating pressure: 0.35 MPa, 0.84 MPa, 3.5 bar, 8.4 bar, Nominal 0.56 MPa, 5.6 bar
  • CE mark: EU Explosion Protection Directive (ATEX), UKCA marking: UK EX instructions
  • Certificate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
  • ATEX category gas: II 2G, ATEX category dust: II 2D
  • Explosion ignition protection type for gas: Ex h IIC T6...T3 Gb X
  • Explosion ignition protection type for dust: Ex h IIIC T85°C...T200°C Db X
  • Explosion ambient temperature: -50°C to +60°C
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -20°C to 80°C
  • Torque at nominal operating pressure: 1200 Nm (0°), 660 Nm (50°), 1000 Nm (90°)
  • Spring return torque: 400 Nm (0°), 300 Nm (50°), 600 Nm (90°)
  • Spring strength: 2
  • Air consumption at 0.6 MPa per cycle: 41.3 L
  • Product weight: 50600 g
  • Shaft connection: T46, Pneumatic connection: G1/4
  • Materials: RoHS-compliant, cover and housing: Wrought aluminium alloy, seals: FPM, NBR, PUR, screws and shaft: High-alloy steel, shaft number: 1.4305


Product

Manufacturer Material ID -
DAPS-0960-090-RS2-F14-MW
Net Weight -

Additional Product Information

Commodity Code -
84123900
Country of Origin -
IT
UNSPSC -
39121402
Festo

Availability Available to order

£4,249.99
