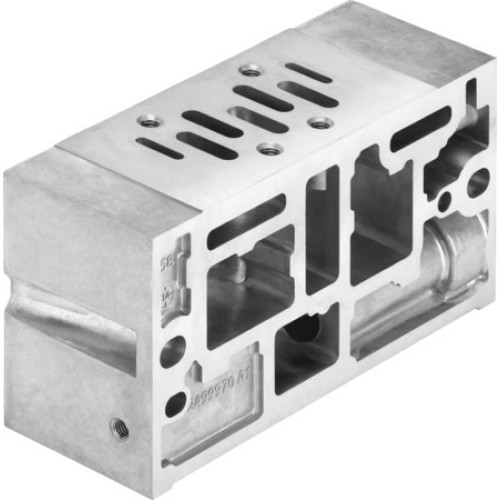

VABV-S1-1SB-N38 Sub-base

Manufacturer's No: VABV-S1-1SB-N38     Manufacturer: Festo
VABV-S1-1SB-N38 Sub-base

Availability Available to order

£33.41
  • Construction width: 44 mm
  • Max. number of valve positions: 1
  • Operating pressure: 0 MPa (0 bar) to 1.6 MPa (16 bar)
  • Suitability for vacuum: Yes
  • CE mark: EU Low Voltage Directive
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Storage temperature: -20°C to 60°C
  • Media temperature: -10°C to 50°C

Read more

  • Pilot medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Ambient temperature: -10°C to 50°C
  • Product weight: 490 g
  • Pneumatic connections: Port 2 and Port 4 - 3/8 NPT
  • Material: Die-cast aluminium, RoHS-compliant


Product

Manufacturer Material ID -
VABV-S1-1SB-N38
Net Weight -
0.53kg

Additional Product Information

Commodity Code -
84819000
Country of Origin -
CN
UNSPSC -
39121402
Festo

Availability Available to order

£33.41
