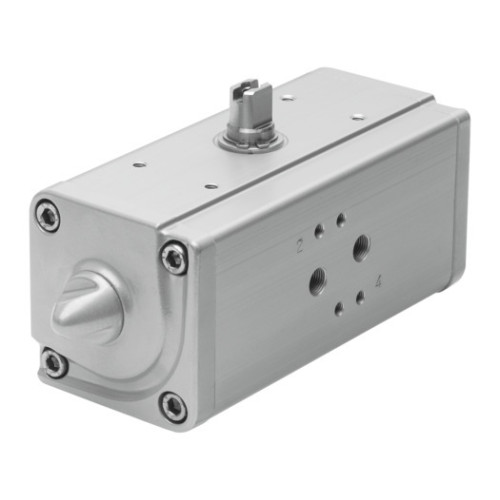

DAPS-0030-090-R-F04-T4 Semi-rotary drive

Manufacturer's No: DAPS-0030-090-R-F04-T4     Manufacturer: Festo
DAPS-0030-090-R-F04-T4 Semi-rotary drive

Availability Available to order

£233.84
  • Type: Semi-rotary drive
  • Actuator Size: 30
  • Flange Hole Pattern: F04
  • Swivel Angle: 90 degrees
  • End-position Adjustment Range at 0°: -1 to 9 degrees
  • Shaft Connection Depth: 13.2 mm
  • Air Connection: VDI/VDE 3845 Namur valves
  • Mounting: Direct flange mounting
  • Operating Pressure: 0.3 to 8.4 BAR
  • Nominal Operating Pressure: 0.56 to 5.6 BAR

Read more

  • Max. Swivel Frequency: 1 HZ at 0.6 MPa
  • Design: Scotch yoke system
  • CE Mark: EU Explosion Protection Directive (ATEX)
  • UKCA Marking: UK EX instructions
  • Safety Integrity Level (SIL): SIL 2 Low Demand mode
  • Explosion Protection: ATEX II 2G for gas, II 2D for dust
  • Ambient Temperature: -20°C to +150°C
  • Torque: 30 NM at 0°, 22.5 NM at 90°
  • Air Consumption: 1.05 L per cycle at 0.6 MPa
  • Product Weight: 1000 g
  • Shaft Connection: T11
  • Pneumatic Connection: G1/8
  • Material: Wrought aluminium alloy cover and housing, FPM and PTFE reinforced seals, high-alloy steel screws and shaft


Product

Manufacturer Material ID -
DAPS-0030-090-R-F04-T4
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
IT
UNSPSC -
39121402
Festo

Availability Available to order

£233.84
