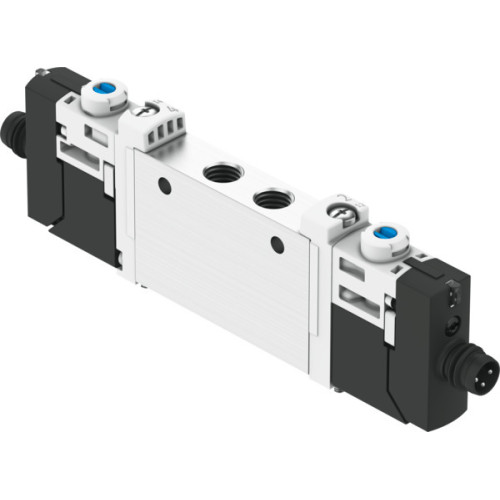

VUVG-L10-T32C-MT-M7-1R8L Solenoid valve

Manufacturer's No: VUVG-L10-T32C-MT-M7-1R8L     Manufacturer: Festo
VUVG-L10-T32C-MT-M7-1R8L Solenoid valve

Availability Available to order

£127.61
  • Solenoid valve VUVG-L10-T32C-MT-M7-1R8L
  • Valve function: 2x3/2-way, monostable, closed
  • Valve size: 10mm
  • Standard nominal flow rate: 155 L/min
  • Operating pressure: 0.25 MPa, 0.8 MPa, 2.5 bar, 8 bar
  • Design: Piston gate valve
  • Type of reset: Mechanical spring
  • Approval: RCM trademark, c UL us - Recognized (OL)
  • Degree of protection: IP65, with plug socket
  • Nominal size: 2mm

Read more

  • Exhaust-air function: With flow control option
  • Sealing principle: Soft
  • Mounting position: Optional
  • Manual override: Detenting, non-detenting, covered
  • Type of piloting: Pilot actuated
  • Pilot air supply: Internal
  • Pilot pressure: 0.2 MPa, 0.8 MPa, 2 bar, 8 bar
  • Switching time off: 11 ms, on: 8 ms
  • Duty cycle: 100%
  • Max. positive test pulse with 0 signal: 700 ms, negative test pulse with 1 signal: 900 ms
  • Characteristic coil data: 24V DC, 1.0W
  • Permissible voltage fluctuations: +/- 10%
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot medium: Lubricated operation possible
  • Vibration resistance: Transport application test with severity level 2
  • Restrictions for environmental and media temperature: -5°C to 50°C
  • Shock resistance: Shock test with severity level 2
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 5 according to ISO 14644-1
  • Media temperature: -5°C to 60°C
  • Ambient temperature: -5°C to 60°C
  • Product weight: 54g
  • Electrical connection: Via electrical sub-base
  • Type of mounting: On manifold rail, with through-hole, either
  • Pneumatic connection ports: M7
  • Note on materials: RoHS-compliant
  • Material seals: HNBR, NBR
  • Material housing: Wrought aluminium alloy


Product

Manufacturer Material ID -
VUVG-L10-T32C-MT-M7-1R8L
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
84812090
Country of Origin -
DE
UNSPSC -
39121402
