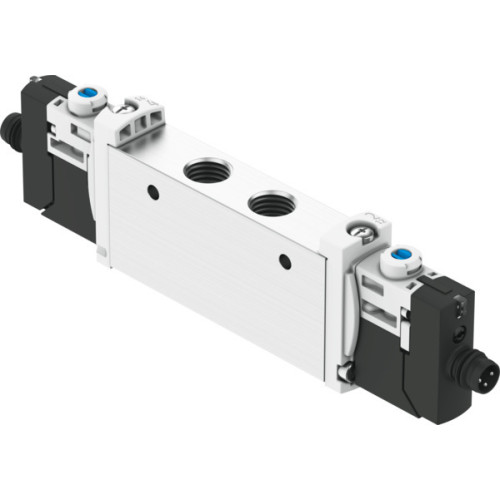

VUVG-L14-T32H-MT-G18-1R8L Solenoid valve

Manufacturer's No: VUVG-L14-T32H-MT-G18-1R8L     Manufacturer: Festo
VUVG-L14-T32H-MT-G18-1R8L Solenoid valve

Availability Available to order

£131.90
  • Solenoid valve VUVG-L14-T32H-MT-G18-1R8L
  • Valve function: 2x3/2-way, open/closed, monostable
  • Type of actuation: Electric
  • Valve size: 14mm
  • Standard nominal flow rate: 480 L/min
  • Operating pressure: 0.3 MPa to 8 bar
  • Design: Piston gate valve
  • Type of reset: Mechanical spring
  • Degree of protection: IP65
  • Nominal size: 4.3mm

Read more

  • Exhaust-air function: With flow control option
  • Sealing principle: Soft
  • Manual override: Detenting and non-detenting, covered
  • Type of piloting: Pilot actuated
  • Pilot air supply: Internal
  • Pilot pressure: 0.35 MPa to 8 bar
  • Switching time off: 18 ms, on: 12 ms
  • Duty cycle: 100%
  • Max. positive test pulse with 0 signal: 700 ms, with 1 signal: 900 ms
  • Characteristic coil data: 24V DC, 1.0W
  • Permissible voltage fluctuations: +/- 10%
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot medium: Lubricated operation possible
  • Vibration resistance: Transport application test with severity level 2
  • Environmental and media temperature: -5°C to 50°C
  • Shock resistance: Shock test with severity level 2
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 5 according to ISO 14644-1
  • Media temperature: -5°C to 60°C
  • Ambient temperature: -5°C to 60°C
  • Product weight: 80g
  • Electrical connection: Via electrical sub-base
  • Type of mounting: On manifold rail, with through-hole, either
  • Pneumatic connection ports: G1/8
  • Note on materials: RoHS-compliant
  • Material seals: HNBR, NBR
  • Material housing: Wrought aluminium alloy


Product

Manufacturer Material ID -
VUVG-L14-T32H-MT-G18-1R8L
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
84812090
Country of Origin -
DE
UNSPSC -
39121402
