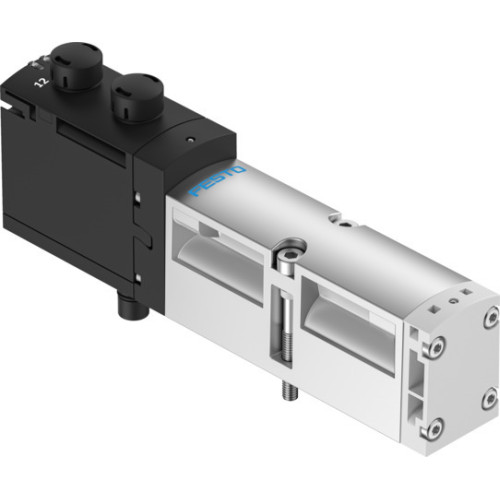

VSVA-B-P53ED-ZH-A1-1T1L Solenoid valve

Manufacturer's No: VSVA-B-P53ED-ZH-A1-1T1L     Manufacturer: Festo
VSVA-B-P53ED-ZH-A1-1T1L Solenoid valve

Availability Available to order

£153.63
  • Solenoid valve VSVA-B-P53ED-ZH-A1-1T1L
  • Valve function: 5/3 exhausted
  • Type of actuation: Electric
  • Construction width: 26 mm
  • Standard nominal flow rate: 1000 L/min
  • Operating pressure: -0.09 MPa to 10 bar
  • Design: Piston gate valve
  • Type of reset: Mechanical spring, Electrical actuation
  • Degree of protection: IP65, NEMA 4
  • Nominal size: 9 mm

Read more

  • Exhaust-air function: With flow control option, Via throttle plate, Via individual sub-base
  • Sealing principle: Soft
  • Mounting position: Optional
  • Manual override: Non-detenting
  • Type of piloting: Pilot actuated
  • Pilot air supply: External
  • Flow direction: Non-reversible
  • Pilot pressure: 0.3 MPa to 10 bar
  • Flow rate of valve: 1400 L/min
  • Non-symmetrical switching time off: 49 ms
  • Non-symmetrical switching time on: 22 ms to 9 ms
  • Duty cycle: 100%
  • Max. positive test pulse with 0 signal: 1200 ms
  • Max. negative test pulse with 1 signal: 1100 ms
  • Max. current consumption: 72 mA
  • Nominal operating voltage DC: 24 V
  • Characteristic coil data: 24 V DC, 1.6 W
  • Immunity to surge: 2.5 kV
  • Pollution degree: 3
  • Permissible voltage fluctuations: +/- 10%
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot medium: Lubricated operation possible
  • Vibration resistance: Transport application test with severity level 2
  • Shock resistance: Shock test with severity level 2
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature: -5°C to 50°C
  • Relative air humidity: 0 - 90%
  • Sound pressure level: 85 dBA
  • Ambient temperature: -5°C to 50°C
  • Max. tightening torque for valve mounting: 1.8 Nm to 2.2 Nm
  • Product weight: 291 g
  • Electrical connection: 4-pin, Plugs, To ISO 15407-2
  • Type of mounting: On sub-base
  • Pilot air port 12/14: Sub-base size 26 mm to ISO 15407-2
  • Pilot exhaust port 82/84: Ducted, Not ducted as per standard, Either
  • Pneumatic connection, port 1-5: Sub-base size 26 mm to ISO 15407-2
  • Note on materials: RoHS-compliant
  • Material seals: FPM, HNBR, NBR
  • Material housing: Die-cast aluminium, PA
  • Material screws: Galvanised steel


Product

Manufacturer Material ID -
VSVA-B-P53ED-ZH-A1-1T1L
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
84812090
Country of Origin -
DE
UNSPSC -
39121402
