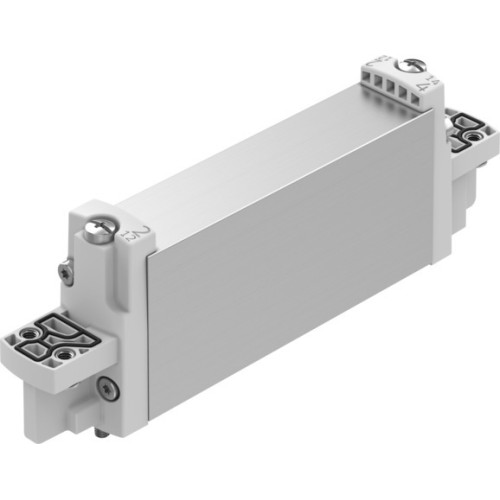

VUVG-B18-T32C-AZ-F-P1 Solenoid valve

Manufacturer's No: VUVG-B18-T32C-AZ-F-P1     Manufacturer: Festo
VUVG-B18-T32C-AZ-F-P1 Solenoid valve

Availability Available to order

£73.12
  • Solenoid valve VUVG-B18-T32C-AZ-F-P1
  • Valve function: 2x3/2-way, monostable, closed
  • Type of actuation: Electric
  • Valve size: 18mm
  • Standard nominal flow rate: 800 L/min
  • Operating pressure: 0.15 MPa, 1 MPa, 1.5 bar, 10 bar
  • Design: Piston gate valve
  • Type of reset: Mechanical spring
  • Approval: c UL us - Recognized (OL), Certificate issuing authority: UL MH19482
  • Degree of protection: IP65, with electric pilot valve and plug socket

Read more

  • Nominal size: 5.7mm
  • Exhaust-air function: With flow control option
  • Sealing principle: Soft
  • Mounting position: Optional
  • Type of piloting: Pilot actuated, Pilot air supply: External
  • Symbol: 992905, lap: Overlap
  • Pilot pressure: 0.15 MPa, 0.8 MPa, 1.5 bar, 8 bar
  • Switching time off: 18 ms, Switching time on: 13 ms
  • Duty cycle: 100%
  • Max. positive test pulse with 0 signal: 700 ms, Max. negative test pulse with 1 signal: 900 ms
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Note on operating and pilot medium: Lubricated operation possible
  • Vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
  • Shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 5 according to ISO 14644-1
  • Media temperature: -5°C to 60°C
  • Ambient temperature: -5°C to 60°C
  • Product weight: 140 g
  • Electrical connection: Via electric pilot valve
  • Type of mounting: On manifold rail
  • Pilot control interface: To ISO 15218
  • Note on materials: RoHS-compliant
  • Material seals: HNBR, NBR
  • Material housing: Wrought aluminium alloy


Product

Manufacturer Material ID -
VUVG-B18-T32C-AZ-F-P1
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
84812090
Country of Origin -
DE
UNSPSC -
39121402
