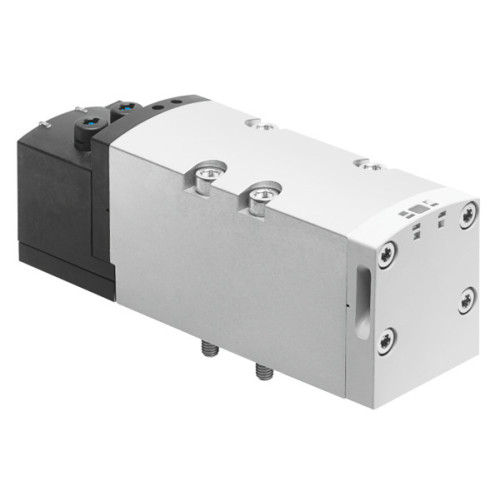

VSVA-B-P53F-ZTR-D2-1T1L Solenoid valve

Manufacturer's No: VSVA-B-P53F-ZTR-D2-1T1L     Manufacturer: Festo
VSVA-B-P53F-ZTR-D2-1T1L Solenoid valve

Availability Available to order

£302.21
  • Solenoid valve VSVA-B-P53F-ZTR-D2-1T1L
  • Valve function: 5/3-way, pressurized 1 to 2, 4 to 5 closed
  • Type of actuation: Electric
  • Construction width: 52 mm
  • Standard nominal flow rate: 2300 L/min
  • Operating pressure: -0.09 MPa to 10 bar
  • Design: Piston gate valve
  • Approval: c UL us - Recognized (OL), KC mark: KC-EMV, CE mark
  • Degree of protection: IP65, NEMA 4
  • Grid dimension: 59 mm

Read more

  • Exhaust-air function: With flow control option via throttle plate or individual sub-base
  • Sealing principle: Soft
  • Mounting position: Optional
  • Conforms to standard: ISO 5599-2
  • Manual override: Detenting and non-detenting options
  • Type of piloting: Pilot actuated, external pilot air supply
  • Flow direction: Optional
  • Signal status display: LED
  • Pilot pressure: 0.3 MPa to 10 bar
  • Flow rate of valve: 3000 L/min, on individual sub-base: 2600 L/min, pneumatically interlinked valve: 2300 L/min
  • Switching time off: 60 ms, on: 23 ms
  • Duty cycle: 100%
  • Nominal pick-up current per solenoid coil: 165 mA up to 30 ms, with current reduction: 35 mA after 30 ms
  • Characteristic coil data: 24 V DC: 4.6 W
  • Immunity to surge: 2.5 KV
  • Pollution degree: 3
  • Permissible voltage fluctuations: +/- 10%
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot medium: Lubricated operation possible
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature: -5°C to 50°C
  • Relative air humidity: 0 - 90%
  • Ambient temperature: -5°C to 50°C
  • Product weight: 780 g
  • Electrical connection: Plug-in, to ISO 5599-2
  • Type of mounting: On sub-base
  • Pilot air port 12/14: Sub-base size 2 to ISO 5599-2
  • Pilot exhaust port 82/84: Ducted or not ducted as per standard
  • Pneumatic connection, port 1 to 5: Sub-base size 2 to ISO 5599-2
  • Note on materials: RoHS-compliant
  • Material seals: FPM, HNBR, NBR
  • Material housing: Die-cast aluminium, PA
  • Material screws: Galvanized steel


Product

Manufacturer Material ID -
VSVA-B-P53F-ZTR-D2-1T1L
Net Weight -
0.82kg

Additional Product Information

Commodity Code -
84812090
Country of Origin -
DE
UNSPSC -
39121402
